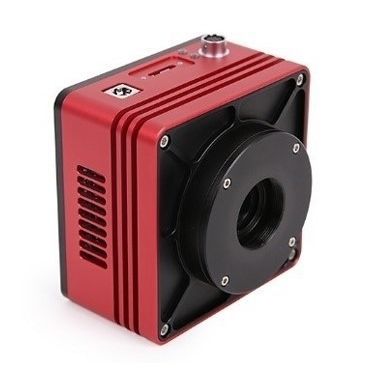

Inspection camera MaxCam-992TE-TR

digitalinfraredcooled

The MaxCam-992TE-TR is a highly advanced infrared camera designed for capturing high-resolution images in the Vis-SWIR (Visible to Short-Wave Infrared) spectrum. Here’s a breakdown of its key features and specifications: Key Specifications: Sensor: Sony IMX992, 1/1.4″ size, 2560×2048 pixel array with 5µm pixel pitch. Wavelength Sensitivity: 400nm to 1700nm, covering visible light to short-wave infrared, making it suitable for a variety of imaging applications. Framerate: Capable of capturing up to 60 frames per second (fps), providing smooth video capture for dynamic scenes. Thermal Management: The camera includes an active thermoelectric (TE) cooler, allowing for a temperature differential (dt) of 30°C, improving image quality by reducing noise and enhancing sensitivity. Interfaces: Available with USB3.0, 10GigE, or CameraLink, providing high-speed data transfer for different use cases. Software: EHDView image-analysis software for Windows (Lite version available for Linux, MAC OS, and Android). Programmers’ API available for multiple platforms (Windows, Linux, MAC OS, and Android), supporting integration with LabView, MATLAB, Python, and Java. Opto-isolated trigger input/output and GPIOs for external device synchronization and control. Key Features: Versatile Imaging: With a sensitivity range from 400nm to 1700nm, the camera can capture a broad range of wavelengths, making it suitable for applications in industries like machine vision, scientific research, industrial inspection, and security. High Resolution & Speed: The 2560×2048 resolution combined with 60fps ensures detailed and fast imaging.
