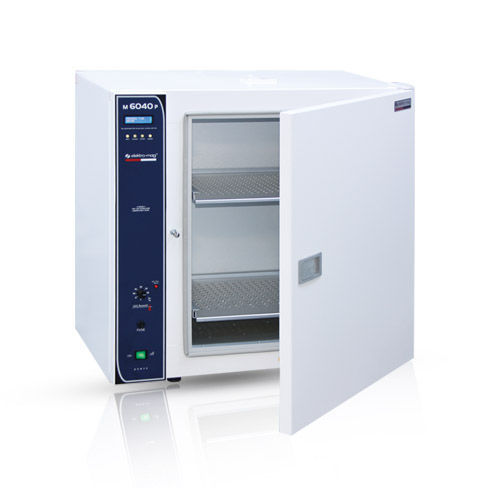

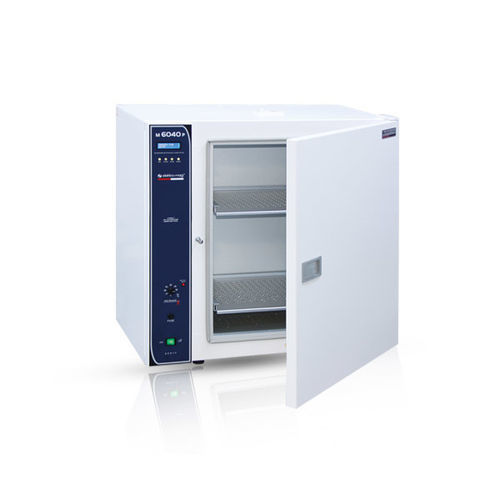

Medical sterilizer M 6040 P SS

laboratoryfor sterilization servicesfor research

Product overview: The M 6040 P SS hot air sterilizer is designed for dry-heat sterilization in laboratories and medical facilities. It operates from ambient temperature +5 °C up to 250 °C and features PID digital control with SSR switching, allowing 1 °C setpoint increments and thermostat accuracy within ±1 °C. A circulating fan ensures homogeneous temperature distribution within the 120 L stainless steel chamber.

Key specifications:

• Working temperature range: Ambient temperature +5 °C to 250 °C
• Capacity (chamber volume): 120 L
• Type of thermoelement: J type
• Temperature control: PID digital control
• Load switching element: SSR (Solid State Relay)
• Thermostat setting increments: 1 °C
• Thermostat working accuracy: ±1 °C
• Chamber temperature accuracy: ±2 °C
• Air circulation: Circulating fan for homogeneous distribution
• Power rating: 1500 W
• Power supply: AC 190–240 V / 50–60 Hz
• Chamber material: Stainless steel
• Casing material: Sheet steel finished in stoved enamel paint
• Dimensions (W x H x D): 79 x 79 x 53 cm
• Net weight: 55 kg

Applications: Suitable for dry sterilization of instruments, glassware and heat‑resistant materials in clinical laboratories, research facilities and medical device processing areas. Intended for workflows where moisture-based sterilization is unsuitable or not required.

Safety and maintenance: Fitted with a liquid expansion thermostat and built-in safety features. Routine checks of sensors, door seals and electrical connections are recommended. Follow institutional maintenance schedules and calibration procedures to ensure compliance and performance.

FAQ:

• Q: How often should the sterilizer be calibrated?
  A: The sterilizer should be calibrated annually to verify temperature accuracy and compliance with laboratory standards.
