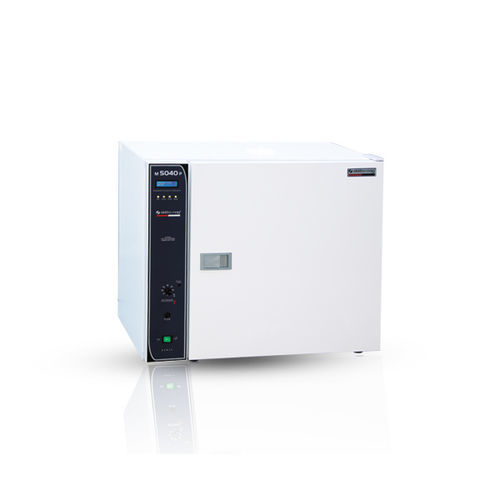

Heat treatment oven M 5040 P

heatingdryinglaboratory

Product overview
The M 5040 P laboratory oven provides controlled heating and drying for medium-sized laboratory tasks. It features a 100 L stainless steel chamber, a working range from ambient +5°C to 250°C, PID digital temperature control and fan-driven air circulation for improved temperature uniformity. The casing is sheet steel with stoved enamel finish and rock wool insulation reduces thermal losses. A liquid-expansion safety thermostat protects against overheating.

Key specifications

• Model: M 5040 P
• Chamber volume: 100 liters
• Working temperature range: Ambient +5°C to 250°C
• Temperature control: PID digital control
• Temperature sensor: J-type thermoelement
• Load switching: SSR (Solid State Relay)
• Thermostat increments: 1°C
• Thermostat accuracy: ±1°C
• Chamber temperature accuracy: ±2°C
• Display increments: 1°C
• Circulation: Fan-driven air circulation for homogeneous heat distribution
• Timer: 1 min – 59 hours 59 min (starts when set temperature is reached)
• Safety: Liquid expansion safety thermostat (50–300°C)
• Casing material: Sheet steel with stoved enamel paint
• Chamber material: Stainless steel
• Insulation material: Rock wool
• Shelves: 2 perforated stainless steel shelves
• Power rating: 1500 W
• Power supply: AC 190–240 V / 50–60 Hz
• Fuse: 10 A
• Chamber dimensions (W x H x D): 50 x 40 x 50 cm
• Overall dimensions (W x H x D): 71 x 53 x 69 cm
• Net weight: 53 kg
• Gross weight: 59 kg

Applications

• Drying and heating of laboratory glassware and components
• Material conditioning, curing and aging tests
• Sample preparation requiring controlled temperature
• General laboratory heat treatment where uniform circulation is required

FAQs

• What is the capacity of the M 5040 P Laboratory Oven? — The oven has a 100-liter chamber, suitable for medium-scale laboratory tasks.
• How is temperature uniformity achieved? — Fan-driven air circulation provides homogeneous heat distribution throughout the chamber.
• Is the oven safe for extended operation? — Yes. A liquid-expansion safety thermostat (50–300°C) prevents overheating during prolonged use.
• What materials are used for the chamber and casing? — The chamber is stainless steel; the casing is sheet steel with a stoved enamel finish.
• What are the electrical requirements? — Power rating 1500 W, supply AC 190–240 V / 50–60 Hz, fuse 10 A.
