Heating oven M 5040 P S

dryingfor general applicationslaboratory

Product Overview

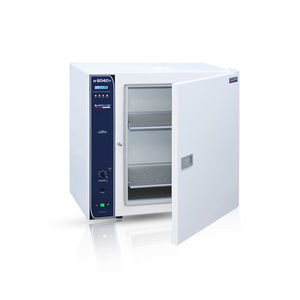

The M 5040 P Laboratory Oven is designed to deliver precise and reliable performance for laboratory heating and drying applications. With a chamber capacity of 100 liters and a working temperature range from ambient +5°C to 250°C, this oven is suitable for medium-sized laboratory operations.

Key Features

• Natural air circulation for homogeneous heat distribution
• PID digital temperature control for stable and accurate temperature management
• Solid State Relay (SSR) as load switching element
• J-type thermoelement
• Safety thermostat with liquid expansion (operating range 50–300°C)
• Stainless steel chamber for durability and corrosion resistance
• Sheet steel casing finished in stoved enamel paint
• Rock wool insulation to minimize energy loss
• Two perforated stainless steel shelves included
• Power rating: 1500 W; Power supply: AC 190–240 V / 50–60 Hz

Specification Table
Feature — Details
Working Temperature Range — Ambient temperature +5°C to 250°C
Capacity (Chamber Volume) — 100 liters
Type of Thermoelement — J-type
Temperature Control — PID Digital control
Load Switching Element — SSR (Solid State Relay)
Thermostat Setting Increments — 1°C steps
Thermostat Working Accuracy — ±1°C
Thermometer Display Increments — 1°C steps
Chamber Temperature Accuracy — ±2°C
Circulating — Natural air circulation ensuring homogeneous heat distribution
Postpone/Process Time — 1 min – 59 hours 59 min
Timing Begins — When the set temperature is reached
Safety Measure — Safety thermostat with liquid expansion (50–300°C)
Casing Material — Sheet steel finished in stoved enamel paint
Chamber Material — Stainless steel
Insulation Material — Rock wool
Shelf — 2 perforated stainless steel
Fuse — 10 Amps
Power Rating — 1500 W
Power Supply — AC 190–240 V / 50–60 Hz
Chamber Dimensions (W x D x H) — 50 x 40 x 50 cm
Overall Dimensions (W x D x H) — 79 x 53 x 69 cm
Net Weight — 53 kg
Gross Weight — 59 kg

Applications

• General laboratory heating and drying
• Medium-scale sample processing where homogeneous temperature is required
• Routine laboratory workflows requiring reliable temperature stability and safety

Frequently Asked Questions (selected)

• What is the capacity? — 100 liters.
• How is temperature uniformity achieved? — Natural air circulation provides uniform heat distribution.
• Is it safe for extended use? — Yes. A safety thermostat with liquid expansion prevents overheating.
• What are the power requirements? — 1500 W; AC 190–240 V / 50–60 Hz.

Technical specifications

• Working Temperature Range: Ambient temperature +5°C to 250°C
• Capacity (Chamber Volume): 100 liters
• Type of Thermoelement: J-type
• Temperature Control: PID Digital control
• Load Switching Element: SSR (Solid State Relay)
• Thermostat Setting Increments: 1°C steps
• Thermostat Working Accuracy: ±1°C
• Thermometer Display Increments: 1°C steps
• Chamber Temperature Accuracy: ±2°C
• Circulating: Natural air circulation ensuring homogeneous heat distribution
• Postpone/Process Time: 1 min – 59 hours 59 min
• Timing Begins: When the set temperature is reached
• Safety Measure: Safety thermostat with liquid expansion (50–300°C)
• Casing Material: Sheet steel finished in stoved enamel paint
• Chamber Material: Stainless steel
• Insulation Material: Rock wool
• Shelf: 2 perforated stainless steel
• Fuse: 10 Amps
• Power Rating: 1500 W
• Power Supply: AC 190–240 V / 50–60 Hz
• Chamber Dimensions (W x D x H): 50 x 40 x 50 cm
• Overall Dimensions (W x D x H): 79 x 53 x 69 cm
• Net Weight: 53 kg
• Gross Weight: 59 kg
