Transfer biosignal acquisition system usbACQ

preclinicalfor animal researchUSB

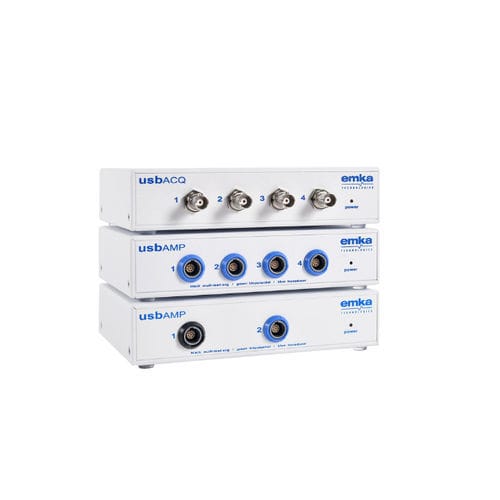

Analog physiological signals need to be digitized, and sometimes amplified, before being acquired by IOX2 software. For this purpose, we offer two USB-based devices that are ideal for a variety of preclinical experiments: usbACQ is designed to acquire and digitize high-level analog signals that are pre-amplified up to ±10 volts. usbAMP is designed to acquire and amplify biopotentials and signals from strain gauge-based transducers. Techniques & measurements Analog signal already amplified The usbACQ device is used to interface between a pre-amplified transducer and the acquisition computer. It provides high resolution analog-to-digital conversion and transfers data to the computer via a USB cable. Biopotential electrodes & strain gauge transducers Biopotential electrodes (multi-lead or single lead ECG, EEG, EMG) and strain gauge transducers (force, pressure…) can be connected to the usbAMP device, that powers strain gauge transducer, amplifies signals, and performs analog-to-digital conversion. Data transfer to the computer is done via an USB cable.
