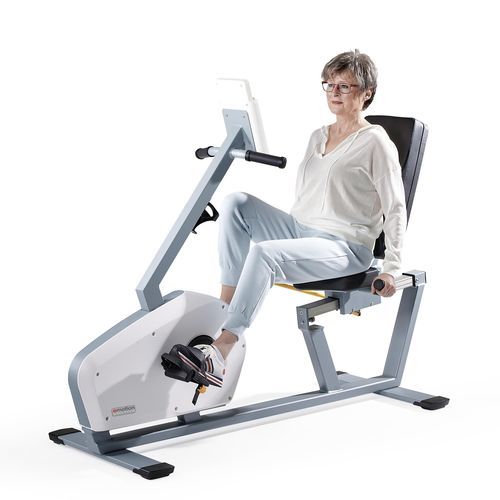

Crank-propelled recumbent bicycle motion relax 900

adultreclininggray

Product description
The motion relax 900 fit/med is a medical recumbent ergometer designed for long training sessions and for patients with neurological or orthopaedic limitations. The device features a wide step-through, favorable Q-factor, handrails for safe mounting/dismounting and a multi-position adjustable backrest. An optional boosted version offers a wider swivel seat, higher armrests and increased maximum user weight up to 250 kg.

Clinical indications and additional details
The pedal shoe assists users with restricted mobility (knee injuries, prostheses, spasticity, hemiparesis, Parkinson’s disease and other lower-limb impairments). The shoe secures the foot with three straps and an additional heel strap to prevent slippage, enabling assisted mobilisation of an affected side. Clinical benefits include improved circulation, maintenance of mobility, pain relief, increased muscle activation and improved cartilage metabolism. The backrest provides 3-step adjustment with scales for horizontal and tilt position. Optional: length-adjustable V-crank.

Functions

• 7-inch capacitive full-color touch display
• Quickstart, watt training, pulse training
• Polar® hybrid heart rate system with automatic pairing (5 kHz & Bluetooth Low Energy®)
• deep, wide step-through
• horizontally adjustable seat
• adjustable backrest

Options

• performance package (Qi charging, up to 950 W, min. 7 W with power supply)
• connect package for system integration
• programmes package (additional programmes, test profiles, programme memory, serious games)
• all-in-package: performance + connect + programmes
• boosted relax 200 — increased user weight to 200 kg
• boosted relax 250 — increased user weight to 250 kg with swivel seat and higher, wider armrests
• length-adjustable cranks, tool-free
• pedal shoe
• anthracite housing option
• certification according to (EU) 2017/745, Class IIa

Technical specifications

• 7-inch capacitive touch display
• Polar® hybrid system (5 kHz & Bluetooth Low Energy®)
• standalone operation, optional: ANT+
• mono belt drive, self-tensioning
• calibrated and re-calibratable quiet HBS brake
• side-dependent power display
• manufactured according to DIN EN ISO 20957-1 S-A-I, DIN EN ISO 20957-5 S-A-I, DIN EN 60601-1-2
• medical device certification (EU) 2017/745, Class IIa
• medical power range: 15–500 W, speed-independent
• fitness power range: 25–500 W, speed-independent
• cadence range: 15–140 rpm
• max. user weight: 150 kg (boosted option up to 250 kg)
• dimensions: approx. 173 x 65 x 133 cm (L x W x H), weight approx. 80 kg
• boosted dimensions: approx. 173 x 78 x 133 cm, weight approx. 104 kg
