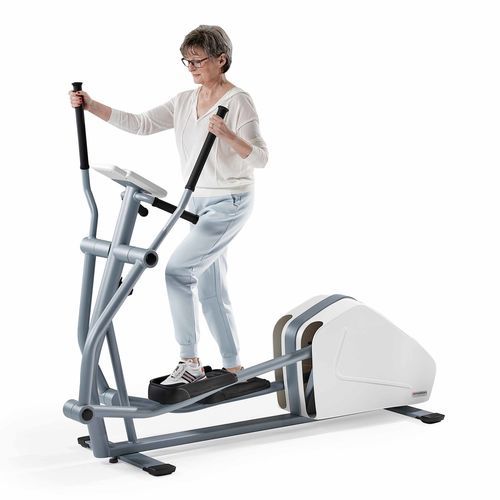

Cross trainer cross 900

Short description
The motion cross 900 guides users into an upright training position and provides low-impact, full-body mobilization. The guided motion enables a quick and safe start to exercise. Long crank arms and an ergonomic coupling of arm and leg movement produce a flowing step and comfortable motion. An adjustable cadence limiter and automatic braking at the end of the session are integrated safety features. The exercise is easy to learn, requiring minimal staff supervision. Compared with other devices on the market, the movement pattern is particularly smooth and joint-friendly. As an optional medical device, the low minimum step-in height of 17 cm is advantageous.

Description
The motion cross 900 is designed to encourage primarily sedentary users to adopt an upright posture and mobilize the entire body. The guided movement supports a safe and rapid start to training. Long crank arms and the ergonomic connection of arm and leg movement create a dynamic yet comfortable step. Safety features include an adjustable cadence limiter and automatic deceleration at the end of the exercise. The movement is easy to learn, which reduces personnel requirements. The device offers a very even, joint-friendly motion compared with many competing solutions. The low entry height of approximately 17 cm is particularly beneficial, especially since the unit can be supplied as a medical device (optional).

Captions / Notes

• Upright training position with full-body engagement.
• Optional anthracite housing available.

FUNCTIONS

• Full-color display
• Durable, clean capacitive touch display
• Quickstart, watt training, heart rate training
• Interference-free Polar® heart rate reception with auto connection (5 kHz & Bluetooth®, backwards compatible)
• Low step-in height of approx. 17 cm
• Forward and backward movement with a stride length of 43 cm
• Large, slip-resistant footrests
• Adjustable cadence limiter for increased safety

OPTIONS

• Performance package (Qi charging option, max. 950 W output)
• Connect package for system integration
• Programmes package (additional programmes, serious games, programme memory)
• All-in package: performance + connect + programmes
• Boosted cross — increased user weight capacity up to 200 kg
• Certification according to (EU) 2017/745, Class IIa (optional)

TECHNICAL

• 7-inch capacitive touch display
• Polar® auto connection system (5 kHz & Bluetooth®)
• Mono belt drive, self-adjusting; optional Ant+
• Calibrated and re-calibratable, quiet HBS brake
• Side-dependent power display
• Operation independent of mains power possible
• Manufactured in accordance with DIN EN ISO 20957-1 S-A-I, DIN EN ISO 20957-9 S-A-I, DIN EN 60601-1-2
• Medical device certification optional according to (EU) 2017/745, Class IIa
• Power range (Medical & Fitness): 100–500 W (speed-independent) or 15–500 W
• Cadence range: 15–140 rpm
• Max. user weight: 150 kg (standard)
• Dimensions: approx. 200 x 65 x 169 cm (L x W x H); Weight: approx. 101 kg

Characteristics / Technical specifications

• Low minimum step-in height: approx. 17 cm
• Upright training position with full-body engagement
• Stride length (forward and backward): 43 cm
• Large slip-resistant footrests
• Adjustable cadence limiter and automatic braking at end of training
• 7-inch capacitive touch display
• Polar® auto connection (5 kHz & Bluetooth®)
• Mono belt drive, self-adjusting (optional Ant+)
• Calibratable, quiet HBS brake
• Side-dependent power display
• Can operate independently of mains power
• Certifications: DIN EN ISO 20957-1 S-A-I, DIN EN ISO 20957-9 S-A-I, DIN EN 60601-1-2
• Optional medical certification according to (EU) 2017/745, Class IIa
• Power range: 100–500 W (speed-independent) or 15–500 W
• Cadence: 15–140 rpm
• Max. user weight (standard): 150 kg (option "boosted cross" increases to 200 kg)
• Dimensions (L x W x H): approx. 200 x 65 x 169 cm
• Weight: approx. 101 kg
