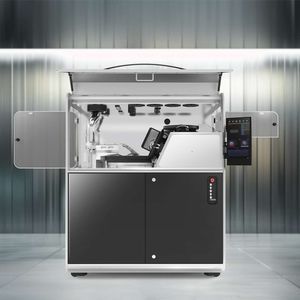

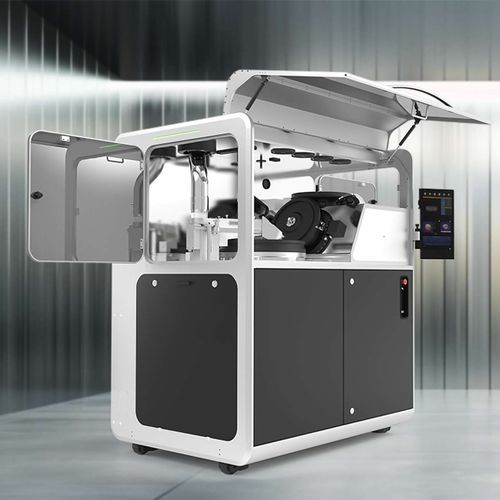

Optical inspection system Planet EVS-T

automatedcomputer-controlledfor tablets

Overview
Pharmaceutical quality inspection prioritizes speed and precision. Planet EVS-T is a single-lane vision inspection system designed for high-volume tablet inspection, delivering stable, high-throughput performance with comprehensive visual detection.

Essence of inspection
The Planet EVS-T line focuses on rapid, precise single-lane inspection for round, oval/oblong and irregular tablet geometries while maintaining stable operation at production speeds.

Advantages

• World's fastest single-lane throughput with stable and accurate inspection performance.
• Versatile inspection across a wide range of tablet sizes and shapes, from very small to large and irregular forms.
• Zero blind spot inspection using a camera array (10×2D + 2×3D) for multi-angle capture.
• Detects chips, print errors, color deviations and other visual defects.
• Precise feeding and de-dusting via vibration screw feeder for consistent pocket positioning.
• Pocket and rotation guides ensure stable orientation and inspection regardless of tablet shape or size.
• Triple-layer checking/sorting architecture to prevent defective mix-in.
• User-oriented features: simple recipe management, easy cleaning to maximize workflow efficiency.
• Dual auto-learning stores pre-position features of tablets for rapid setup and improved accuracy.

Video
Product video available demonstrating Planet EVS-T operation and features (hosted on the manufacturer's video channel).

Speed by tablet shape / size
Shape | Size | Speed (pieces/hour)
Round tablet (diameter):
4.6–5.3 mm — 600,000 p/h
5.3–6.1 mm — 520,000 p/h
6.1–7.1 mm — 450,000 p/h
7.1–8.2 mm — 390,000 p/h
8.2–9.3 mm — 340,000 p/h
9.3–10.7 mm — 300,000 p/h
10.7–12.4 mm — 257,000 p/h
12.4–14.0 mm — 200,000 p/h

Oval / oblong tablet (length):
10 mm — 300,000 p/h
12 mm — 250,000 p/h
14 mm — 210,000 p/h
16 mm — 190,000 p/h
18 mm — 170,000 p/h
20 mm — 140,000 p/h
22 mm — 130,000 p/h

Inspection & technology details

• Camera configuration: multiple 2D cameras and 3D cameras (10×2D + 2×3D) to achieve full multi-angle capture and eliminate blind spots.
• Detected defect types: chips, printing defects, color deviation and other visual anomalies.
• Feeding system: vibration screw feeder for precise de-dusting and consistent positioning into inspection pockets.
• Positioning & guides: pocket guides and rotation guides for stable orientation across varied tablet geometries.
• Sorting & safety: triple-layer checking/sorting architecture to avoid defective mix-in.
• Usability: recipe management, easy cleaning, dual auto-learning for storing pre-position features.

Technical specifications

• Commercial name: Planet EVS-T
• Brand: ENCLONY
• Camera system: 10 × 2D cameras + 2 × 3D cameras (no blind angles)
• Feeding: vibration screw feeder for precise de-dusting
• Guides: pocket and rotation guides for stable inspection
• Inspection targets: round, oval/oblong and irregular tablet shapes
• Supported round tablet diameters & nominal throughput (examples): 4.6–5.3 mm up to 600,000 p/h; 5.3–6.1 mm up to 520,000 p/h; 6.1–7.1 mm up to 450,000 p/h; up to 12.4–14.0 mm categories with lower throughput as listed above
• Supported oval/oblong lengths & throughput (examples): 10 mm ~ 300,000 p/h; up to 22 mm ~ 130,000 p/h
• Sorting safety: triple-layer safety / triple checking system
• User features: recipe setting, easy cleaning, dual auto-learning (pre-position storage)
• Primary strengths: highest single-lane throughput, zero blind spot inspection, high detection accuracy for cosmetic and print defects
