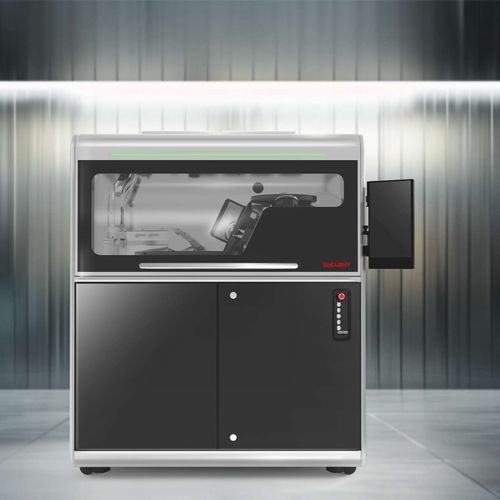

Optical inspection system PLANET EVS-C

automaticPC-controllableautomated

Overview
PLANET EVS-C is a capsule vision inspection system designed for high-throughput pharmaceutical production lines. Equipped with 14 cameras including IR sensors, it performs full-shape and content inspection to detect visual and structural defects while maintaining stable, repeatable performance.

Key Advantages

• High throughput: single‑lane, high‑speed inspection optimized for capsule production.
• Universal compatibility: supports all capsule types conforming to global standards.
• Complete coverage: 14 cameras including IR provide full-shape and internal-content checks with zero blind spots.
• Comprehensive defect detection: identifies double caps, misprints, fill-level issues and other visual/structural defects.
• Accurate feeding: vibration screw feeder ensures precise de‑dusting and consistent presentation.
• Stable guidance: pocket and rotation guides secure capsules of varying shapes and sizes for reliable inspection.
• Robust rejection control: triple-layer checking system prevents defective mix‑ins during sorting.
• Operator-friendly: simple recipe management and easy-to-clean design to reduce downtime.
• Adaptive learning: automatic pattern learning for each capsule variant to improve detection accuracy.
• Operator safety: designed with prioritized safety features for production environments.

Video
Product page includes an embedded video demonstrating system operation, inspection modes and sorting behavior.

Speed (example by capsule type)
Type | Size | Speed
Hard Gelatin Capsule | 5 | 210,000
Hard Gelatin Capsule | 4 | 195,000
Hard Gelatin Capsule | 3 | 180,000
Hard Gelatin Capsule | 2 | 170,000
Hard Gelatin Capsule | 1 | 155,000
Hard Gelatin Capsule | 0 | 140,000
Hard Gelatin Capsule | 00 | 130,000

Machine Dimensions / Views
Top View; Front View; Right View; With Drum Lift. Dimensional drawings and CAD files available on the product page.

Technical specifications

• Model: PLANET EVS-C
• Brand: ENCLONY
• Inspection type: Vision inspection (visual and structural)
• Cameras: 14 cameras including IR for full-shape and content inspection
• Detectable defects: double caps, misprints, fill issues and other visual/structural defects
• Feeding system: Vibration screw feeder for precise de-dusting
• Guides: Pocket and rotation guides for stable inspection of various shapes and sizes
• Safety: Triple-layer safety / triple checking system
• Compatibility: Supports all capsule types under global standards
• Performance (example speeds): see Speed table above
• Video: Embedded product demonstration available
• Machine dimensions: Top / Front / Right / With Drum Lift views and drawings available
