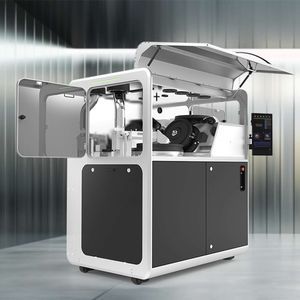

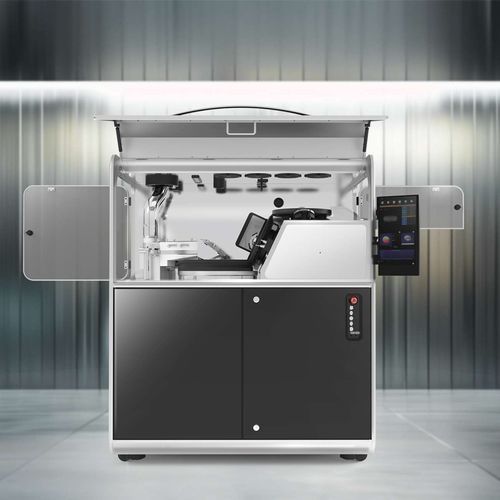

Optical inspection system Planet EVS-TC

automatedPC-controllablecomputer-controlled

Overview
High-speed vision inspection system Planet EVS-TC for tablets and capsules. Designed to detect coating, shape, breakage and fill defects for tablets and capsules. Advanced camera architecture, precision feeding and machine learning enable high throughput and reduced false rejects.

Key Advantages

• High speed: Delivers industry-leading inspection throughput with consistent accuracy and stability.
• Quick changeover: Minimal part changes for fast and simple equipment setup.
• Precision feeding: Precision vibrating screw feeder ensures accurate separation and transfer.
• Guided stability: 25 pocket guides and 20 rotation guide types provide reliable positioning and sorting for various shapes.
• Zero blind spot: Combination of 10 2D cameras and 2 3D cameras enables full coverage without blind spots.
• Inside & outside inspection: Capsule shape and internal content inspected using 14 2D and infrared cameras.
• Defect detection (tablet): Detects cracks, chips, coating defects, printing errors and color inconsistencies.
• Defect detection (capsule): Detects double caps, missing caps, fill/weight irregularities and printing errors.
• Triple checking: Three-step safety system ensures correct sorting and prevents mix-ups.
• User friendly: Simplified recipe settings and easy cleaning reduce downtime and ease operation.
• Smart study: Machine learning stores optical characteristics per product to improve detection and limit false rejects.
• Safety: Engineered with comprehensive safety measures to protect operators.

Inspection & Feeding
Precision vibrating screw feeder provides consistent separation and transfer. Multiple guides (pocket and rotation guides) accommodate a wide variety of tablet and capsule shapes and sizes while ensuring guided stability and reliable sorting.

Camera & Sensor Configuration
Multiple 2D and 3D cameras for tablets (10 2D + 2 3D) and an array including 14 2D and infrared cameras for capsule internal inspection. Configuration is designed to eliminate blind spots and provide both surface and internal content inspection.

Performance — Speed Matrix
Tablet — Round (Diameter): 4.6–5.3 mm — 600,000 units/hour
5.3–6.1 mm — 520,000 units/hour
6.1–7.1 mm — 450,000 units/hour
7.1–8.2 mm — 390,000 units/hour
8.2–9.3 mm — 340,000 units/hour
9.3–10.7 mm — 300,000 units/hour
10.7–12.4 mm — 257,000 units/hour
12.4–14 mm — 200,000 units/hour
Oval/Oblong (Length): 10 mm — 300,000 units/hour
12 mm — 250,000 units/hour
14 mm — 210,000 units/hour
16 mm — 190,000 units/hour
18 mm — 170,000 units/hour
20 mm — 140,000 units/hour
22 mm — 130,000 units/hour
Capsule — Hard gelatin capsule (size): size 5 — 210,000 units/hour; size 4 — 195,000 units/hour; size 3 — 180,000 units/hour; size 2 — 170,000 units/hour; size 1 — 155,000 units/hour; size 0 — 140,000 units/hour; size 00 — 130,000 units/hour

Typical Detectable Defects

• Tablet: cracks, chips, breakage, coating defects, color inconsistency, printing defects, shape anomalies.
• Capsule: double caps, missing caps, incorrect fill/weight, printing errors, shape defects, internal content anomalies (via infrared).

Applications
High-speed pharmaceutical tablet and capsule inspection lines requiring high throughput, full-coverage detection, minimal changeover time and advanced defect classification.

Technical specifications

• Model name: Planet EVS-TC
• Brand: ENCLONY
• Inspection cameras (tablet): 10 × 2D cameras + 2 × 3D cameras
• Inspection cameras (capsule): 14 × 2D + infrared cameras for internal inspection
• Feeding: Precision vibrating screw feeder
• Guides: 25 pocket guides and 20 rotation guide types
• Safety: Three-step triple checking safety system
• Machine learning: Stores optical characteristics per product
• Typical max speeds: up to 600,000 units/hour (depending on tablet/capsule size and type)
• Inspection coverage: Inside & outside inspection for capsules; multi-angle 2D/3D for tablets
