Pendant lighting EVO Media 60
operating roomfor dental clinicsfor clinic

Pendant lighting - EVO Media 60 - EVO-MED (marque EVO-LIGHT) - operating room / for dental clinics / for clinic

Pendant lighting - EVO Media 60 - EVO-MED (marque EVO-LIGHT) - operating room / for dental clinics / for clinic - image - 2

Pendant lighting - EVO Media 60 - EVO-MED (marque EVO-LIGHT) - operating room / for dental clinics / for clinic - image - 3

Pendant lighting - EVO Media 60 - EVO-MED (marque EVO-LIGHT) - operating room / for dental clinics / for clinic - image - 4

Add to favorites

Compare this product

Go to the EVO-MED (marque EVO-LIGHT) website for more information

Characteristics

Mounting: pendant
Facility: operating room, for clinic, for dental clinics
Light source: LED
Other characteristics: with multimedia terminal, homogeneous
Color temperature: 3,000 K, 4,000 K, 6,000 K

Description

Overview

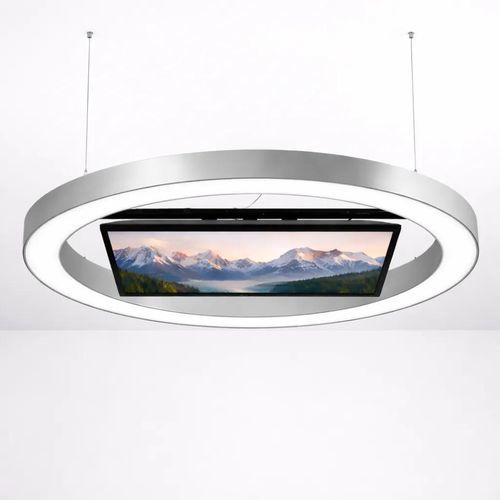

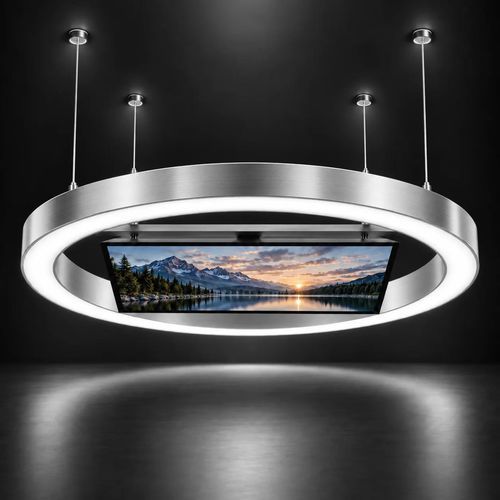

EVO Media 60 combines a circular architectural LED ring and an integrated 32-inch (80 cm) display to transform the patient experience in treatment rooms. Designed to deliver homogeneous LED illumination and a premium presence above the chair, it is offered in multiple diameters to suit compact practices as well as larger treatment areas.

Key points

Circular LED pendant with central integrated display (32 inches / 80 cm).
Homogeneous LED lighting with architectural ring.
Available diameters: Ø450 mm to Ø5000 mm.
Finishes: black, white, silver, gold.
Control modes: ON/OFF, 0-10V, DALI, emergency version.
Fixture warranty: 5 years / display warranty: 2 years.
Installation offered as an option depending on the project.

Recommended applications

Treatment room
Surgical box
Premium dental practice
Dental clinic
Renovation project
New practice fit-out

Options and customization

Diameter configurable per project (Ø450 mm to Ø5000 mm).
Customizable finishes (white, silver, black, gold).
Color temperature: 3000K / 4000K / 6000K or customizable.
Available control modes: ON/OFF, 0-10V, DALI, emergency version.
Display integration: 32 inches / 80 cm.
Project plan study included in project support.

Remarks
Exact specifications are confirmed according to the selected configuration, chosen options and project constraints.

Technical specifications

Type: Circular LED pendant with integrated 32 inches / 80 cm display
Main dimensions: 1 200 × 100 mm (120 × 10 cm)
Profile: Aluminium 6063 with opal diffuser
Profile section: 60 × 80 mm
Power supply: AC100-277V / AC220-240V, 50/60Hz
LED: Philips SMD2835
Drivers: BOKE / Cupower
Color temperatures: 3000K / 4000K / 6000K / customizable per project
Luminous efficacy: 100 lm/W
Power factor: > 0.95
SDCM: < 3
Operation: Flicker-free
Beam angle: 120°
Control modes: ON/OFF, 0-10V, DALI, emergency version
Finishes: Black, white, silver, gold
Installation: Pendant — installation offered as an option depending on the project
Available diameters: From Ø450 mm to Ø5000 mm
Powers: From 30W × 2 to 360W × 2
Luminous flux: From 6000 lm to 72000 lm
Display: Integrated 32 inches / 80 cm
Fixture warranty: 5 years
Display warranty: 2 years
Indicative price: From €4,900 excl. VAT, depending on configuration
Delivery: Europe, priced per project
