Built-in lighting EVO Media Square 60

pendantceiling-mountedoperating room

Presentation

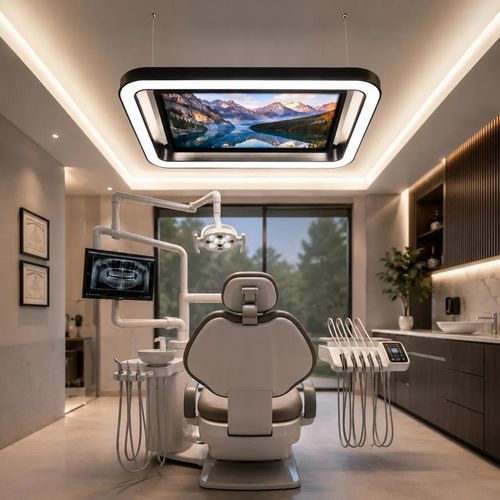

EVO Media Square 60 combines a contemporary square format, homogeneous LED lighting and an integrated Smart TV to deliver an immersive patient experience above the dental chair. Its architectural presence is intended for treatment rooms and clinics requiring integrated lighting and media.

Indicative price
From €4,900 excl. VAT (indicative, depends on configuration). Installation, delivery and options are quoted per project.

Key points

• Square LED pendant with integrated Smart TV (32-inch / 80 cm).
• Square format for strong architectural presence.
• Wide homogeneous architectural LED lighting.
• Selectable colour temperatures (3000K / 4000K / 6000K).
• Multiple control modes (ON/OFF, 0-10V, DALI, DALI DT6, DALI DT8, Triac).
• Available finishes: white, black, gold, silver.
• Warranty: luminaire 5 years, screen 2 years.

Recommended uses

• Premium treatment room — immersive patient experience above the chair.
• Surgical box — integration compatible with clinical constraints.
• Modern dental practice — combine contemporary design, lighting and patient comfort.
• Dental clinic — enhance treatment rooms with integrated lighting and media.
• New practice design — integrate the fixture during space planning.
• Renovation projects — adapt the square format to existing ceiling constraints.

Available finishes

• White
• Black
• Gold
• Silver

Options and customization

• Square format according to configuration.
• Dimensions adapted to project (range available: 0.45 × 0.45 m to 3.6 × 3.6 m).
• Customisable colour temperature (3000K / 4000K / 6000K).
• Control modes configurable (ON/OFF, 0-10V, DALI, DALI DT6, DALI DT8, Triac).
• Finish selection per project.
• Project plan study included as part of project support (options and integration per technical constraints).

Integration (steps)

• Send plans
• Room analysis
• Configuration proposal
• Detailed quotation

Technical specifications (excerpt)
Type: Square LED pendant with integrated Smart TV
Primary dimensions: 960 × 660 mm (96 × 66 cm)
Profile: Aluminium 6063 with opal diffuser
LED: SANAN SMD2835
Drivers: BOKE / Cupower
Colour temperatures: 3000K / 4000K / 6000K (configurable)
Beam angle: 120°
Flicker: No visible flicker
Control modes: ON/OFF, 0-10V, DALI, DALI DT6, DALI DT8, Triac
Finishes: White, black, gold, silver
Installation: Pendant, ceiling or recessed — installation quoted per project
Dimension range: From 0.45 × 0.45 m to 3.6 × 3.6 m
Powers: From 36W to 288W
Luminous flux: From 3,600 lm to 28,800 lm
Smart TV: Integrated — 32-inch (80 cm) screen
Luminaire warranty: 5 years
Screen warranty: 2 years
Indicative price: From €4,900 excl. VAT (depending on configuration)
Delivery: Europe, quoted per project

Specifications

• Type: Square LED pendant with integrated Smart TV
• Primary dimensions: 960 × 660 mm (96 × 66 cm)
• Profile: Aluminium 6063 with opal diffuser
• LED: SANAN SMD2835
• Drivers: BOKE / Cupower
• Colour temperatures: 3000K / 4000K / 6000K (configurable)
• Beam angle: 120°
• Flicker: No visible flicker
• Control modes: ON/OFF, 0-10V, DALI, DALI DT6, DALI DT8, Triac
• Finishes: White, black, gold, silver
• Installation: Pendant, ceiling or recessed — installation quoted per project
• Dimension range: From 0.45 × 0.45 m to 3.6 × 3.6 m
• Powers: From 36W to 288W
• Luminous flux: From 3,600 lm to 28,800 lm
• Smart TV: Integrated — 32-inch (80 cm)
• Luminaire warranty: 5 years
• Screen warranty: 2 years
• Indicative price: From €4,900 excl. VAT (depending on configuration)
• Delivery: Europe (quoted per project)
