Built-in lighting EVO Oval Media 90

pendantceiling-mountedoperating room

Summary

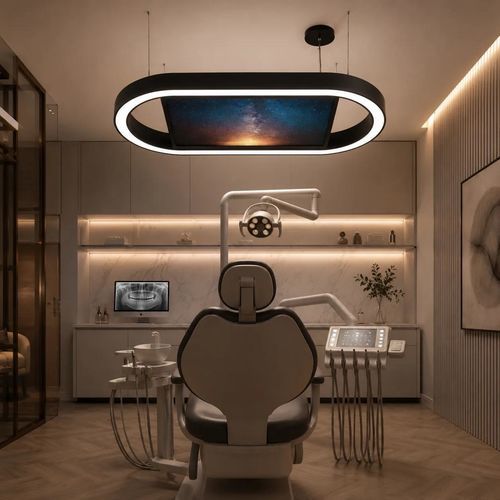

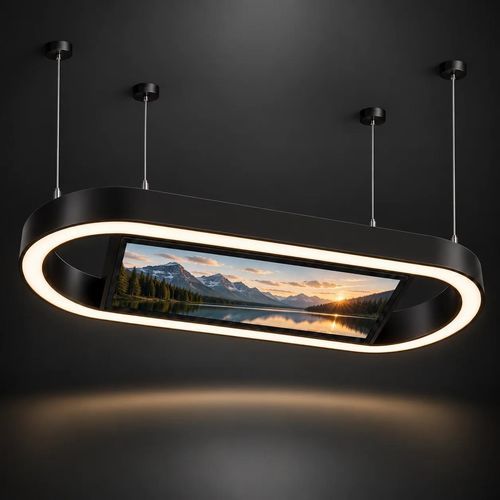

EVO Oval Media 90 is an oval LED pendant with an integrated 32-inch / 80 cm Smart TV, providing both uplight and downlight. Designed to deliver an elegant architectural presence above the treatment chair, it is intended for premium dental practices and medical treatment rooms.

Key benefits

• Integrated 32-inch / 80 cm Smart TV
• Architectural LED uplight and downlight
• Oval format (oval 90) for a strong aesthetic presence
• SANAN SMD2835 LEDs with Lifud / BOKE drivers
• Fixture warranty: 5 years · Display warranty: 2 years
• Indicative price: from €4,000 excl. VAT (depending on configuration)

Recommended applications

• Premium treatment room
• Surgical box
• Modern dental practice
• Dental clinic
• New clinic project
• Renovation project

Finishes available

• White
• Silver
• Black
• Gold

Options and customization

• Oval formats by configuration
• Finishes according to project
• Color temperature: 3000K / 4000K / 6000K / 3000–6000K Tunable
• Control modes: ON/OFF, 0-10V, DALI, DALI Push, DALI DT8, Triac, Remote Control RGBW
• Integrated 32-inch / 80 cm Smart TV
• Project support with layout study included

Table of characteristics
Type — Oval LED pendant with integrated 32-inch / 80 cm Smart TV
Key dimensions — 1 240 × 560 mm (124 × 56 cm)
Light distribution — Uplight and downlight
Profile — Aluminium 6063 with opal diffuser
LED — SANAN SMD2835
Drivers — Lifud / BOKE
Color temperatures — 3000K / 4000K / 6000K / 3000–6000K Tunable
Luminous efficacy — 100 to 110 lm/W
CRI — > 80Ra
Power factor — PF > 0.90
UGR — < 19
Flicker — No flicker
Beam angle — 120°
Control modes — ON/OFF, 0-10V, DALI, DALI Push, DALI DT8, Triac, Remote Control RGBW
Finishes — Black, white, silver, gold
Installation — Pendant; ceiling or recessed installation optional per project
IP rating — IP20
Smart TV — Integrated 32-inch / 80 cm
Fixture warranty — 5 years
Display warranty — 2 years
Indicative price — From €4,000 excl. VAT, depending on configuration
Delivery — Europe, costing per project

Characteristics / technical specifications

• Type: Oval LED pendant with integrated 32-inch / 80 cm Smart TV
• Key dimensions: 1 240 × 560 mm (124 × 56 cm)
• Light distribution: Uplight and downlight
• Profile: Aluminium 6063 with opal diffuser
• LED: SANAN SMD2835
• Drivers: Lifud / BOKE
• Color temperatures: 3000K / 4000K / 6000K / 3000–6000K Tunable
• Luminous efficacy: 100 to 110 lm/W
• CRI: > 80Ra
• Power factor: PF > 0.90
• UGR: < 19
• Flicker: No flicker
• Beam angle: 120°
• Control modes: ON/OFF, 0-10V, DALI, DALI Push, DALI DT8, Triac, Remote Control RGBW
• Finishes: Black, white, silver, gold
• Installation: Pendant, ceiling or recessed (installation optional per project)
• IP rating: IP20
• Smart TV: Integrated 32-inch / 80 cm
• Fixture warranty: 5 years
• Display warranty: 2 years
• Indicative price: From €4,000 excl. VAT (depending on configuration)
• Delivery: Europe (costing per project)
