Wall-mounted lighting EVO Indirect
pendantceiling-mountedfor dental clinics

Wall-mounted lighting - EVO Indirect - EVO-MED (marque EVO-LIGHT) - pendant / ceiling-mounted / for dental clinics

Add to favorites

Compare this product

Go to the EVO-MED (marque EVO-LIGHT) website for more information

Characteristics

Mounting

ceiling-mounted, pendant, wall-mounted

Facility

for clinic, for dental clinics

Light source

LED

Other characteristics

homogeneous

Color temperature

3,000 K, 4,000 K, 6,000 K

Color rendering index

Min.: 80 unit

Max.: 100 unit

Description

Overview

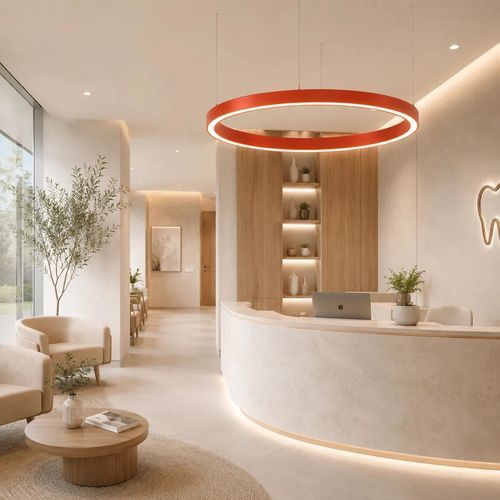

EVO Indirect delivers a soft, diffuse light through indirect illumination, offering a more refined effect than a classic luminous ring. Its slim profile W31 × H50 mm provides a lightweight, discreet architectural appearance, ideal for projects seeking a minimalist circular luminaire.

Key points

Indirect lighting for soft, diffuse illumination
Slim profile: W31 × H50 mm
Wide range of diameters (Ø450 to Ø7640 mm) for projects of all scales
Dimming: DALI / 0-10V / Triac / ON-OFF
Power supply compatible with AC100-277V / AC220-240V, 50/60Hz
Fixture warranty: 5 years
Installation offered as an option

Recommended applications

Reception areas
Waiting rooms
Premium offices
Premium spaces
Decorative or signage projects (special luminous colors on request)
Architectural projects

Finishes available

White
Silver
Black
Gold

Options and customization

Color temperatures: 3000K / 4000K / 6000K / 3000–6000K customizable
Dimming modes: ON/OFF, 0-10V, Triac, DALI
Special luminous colors: red, green, blue, pink, yellow (on request)
Diameters: Ø450 to Ø7640 mm depending on project
Mounting types: suspension, ceiling-mounted or wall-mounted (installation optional)
Project support with plan study included

Technical data (table)
Type: Circular indirect LED suspension
Profile: Aluminium 6063 with opal diffuser
Profile dimensions: W31 × H50 mm
Power supply: AC100-277V / AC220-240V, 50/60Hz
LED: SANAN SMD2835
Drivers: BOKE / Cupower
Color temperatures: 3000K / 4000K / 6000K / 3000–6000K customizable
CRI: > 80Ra
Power factor: 0.95
Operation: Flicker-free
Beam angle: 120°
Control modes: ON/OFF, 0-10V, Triac, DALI dimming
Installation: Suspension, ceiling or wall mounting — installation optional
Finishes: Black, white, gold, silver
Special luminous colors: Red, green, blue, pink, yellow (on request)
Available diameters: Ø450 / Ø640 / Ø800 / Ø960 / Ø1120 / Ø1440 / Ø1720 / Ø1910 / Ø2300 / Ø2550 / Ø2870 / Ø3190 / Ø3820 / Ø4460 / Ø5100 / Ø5730 / Ø6370 / Ø7640 mm
Powers: From 30W to 480W
Luminous flux: From 3,000 lm to 48,000 lm
Protection rating: IP20
Fixture warranty: 5 years
Indicative price: From €3,000 excl. VAT, depending on configuration
Delivery: Europe, quoted per project
