Built-in lighting Frame Curvependantceiling-mountedfor clinic
Add to favorites
Compare this product
Characteristics
- Mounting
- ceiling-mounted, pendant, built-in
- Facility
- medical, for clinic
- Light source
- LED
- Other characteristics
- homogeneous
- Color temperature
Min.: 3,000 K
Max.: 6,000 K
3,000 K, 4,000 K, 6,000 K
- Color rendering index
Min.: 80 unit
Max.: 100 unit
Description
Presentation

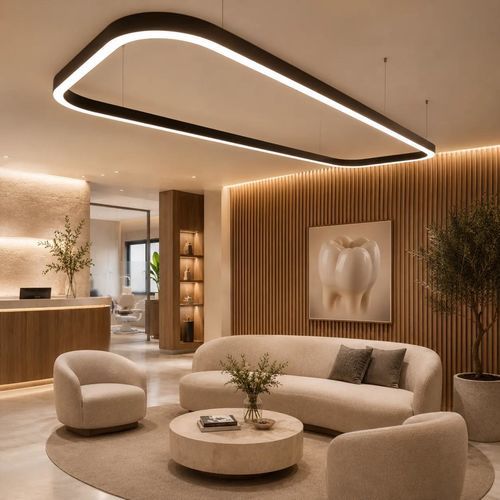

Rectangular LED suspension with softened corners designed for receptions, waiting areas, premium offices and care spaces. Frame Curve features a W60 × H80 mm profile with an opal diffuser for uniform, well-controlled lighting tailored to professional interior projects.
Indicative price
From €8,000 excl. VAT. Integrated screen option: + €1,200 excl. VAT. (Installation, delivery and options priced per project)
Key features
Recommended applications
Available finishes
Options and customization
Typical integration steps (description)
Characteristics / technical specifications
Rectangular LED suspension with softened corners designed for receptions, waiting areas, premium offices and care spaces. Frame Curve features a W60 × H80 mm profile with an opal diffuser for uniform, well-controlled lighting tailored to professional interior projects.
Indicative price
From €8,000 excl. VAT. Integrated screen option: + €1,200 excl. VAT. (Installation, delivery and options priced per project)
Key features
- Curved rectangular design providing an elegant graphic presence
- Opal diffuser for homogeneous light distribution
- Available in multiple formats to suit different configurations
- Various control options (DALI, DT6, DT8, Triac, 0-10V, ON/OFF)
- 5-year luminaire warranty
Recommended applications
- Waiting room
- Reception area
- Premium office
- Premium care space
- Contemporary architectural projects
- Clinic / medical center
Available finishes
- White
- Silver
- Black
- Gold (premium)
Options and customization
- Color temperatures: 3000K / 4000K / 6000K / customizable 3000–6000K
- Control modes: ON/OFF, 0-10V, DALI, DALI DT6, DALI DT8, Triac dimming
- Formats: from 1000 × 550 mm to 3600 × 1200 mm
- Installation types: suspension, surface-mounted or recessed (installation optional)
- Drivers: BOKE / Cupower
Typical integration steps (description)
- Send plans and dimensions of the area to be fitted
- Analysis of configuration, ceiling height and identity of the space
- Proposal of configuration (format, finish, color temperature, control mode)
- Quotation per luminaire; delivery and installation quoted as options
Characteristics / technical specifications
- Type: Curved rectangular LED suspension
- Profile: Aluminium 6063 with opal diffuser
- Profile dimensions: W60 × H80 mm
- Supply: AC100-277V / AC220-240V, 50/60Hz
- LED: SANAN SMD2835
- Drivers: BOKE / Cupower
- Color temperatures: 3000K / 4000K / 6000K / customizable 3000–6000K
- CRI: > 80Ra
- Power factor: 0.95
- Operation: Flicker-free
- Beam angle: 120°
- Control modes (detailed): ON/OFF, 0-10V, DALI, DALI DT6, DALI DT8, Triac dimming
- Installation: Suspension, surface-mounted or recessed — installation optional
- Finishes: Black, white, gold, silver
- Available dimensions: 1000 × 550 mm to 3600 × 1200 mm
- Powers: 30W to 96W
- Luminous flux: 3,000 lm to 9,600 lm
- Ingress protection: IP20
- Luminaire warranty: 5 years
- Indicative price: From €8,000 excl. VAT, depending on configuration
- Integrated screen option: + €1,200 excl. VAT
- Delivery: Europe, priced per project
