Ceiling-mounted lighting Flex EVO 360

for dental facilitiesLED

Overview
Flexible cylindrical LED luminaire with 360° light emission designed for receptions, corridors, waiting areas and contemporary spaces. Slim cylindrical format (diameter 22 mm). Flexible structure allowing a high freedom of shaping. Available in multiple lengths and color temperatures, with an RGB option for projects with strong visual impact.

Key points

• 360° light emission for a sculptural rendering.
• Flexible structure providing high freedom of routing and installation.
• Aluminium 6063 profile with silicone finish.
• Diameter Ø22 mm, slim and discreet format.
• Available in multiple lengths (2 m to 10 m) and powers (40W to 200W).
• RGB option and fixed colours (red, green, blue, pink, violet) in addition to warm/cool whites.
• Luminaire warranty: 5 years.

Recommended applications

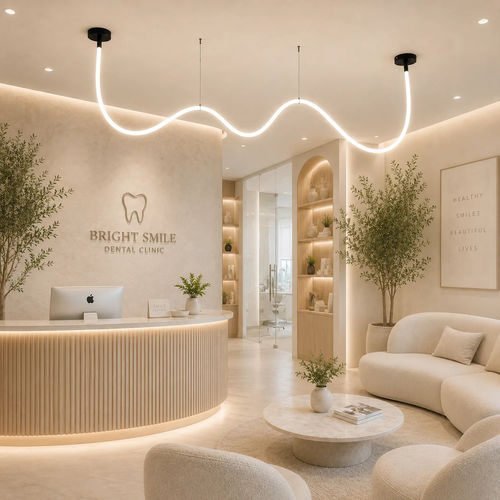

• Reception area — structure an entrance with continuous sculptural light.
• Corridor — rhythm a long corridor with a flexible light path.
• Waiting room — provide a contemporary and differentiating atmosphere.
• Contemporary space — integrate a sculptural luminaire in a design project.
• Decorative or signage project — use with RGB option or coloured emissions.
• Architect's project — compose a free light path within a global architectural vision.

Finishes and options

• Base finishes: matte white or matte black.
• Emission colours: 2700K, 3000K, 4000K, 6000K, red, green, blue, pink, violet, RGB.
• Available lengths: 2 m / 3 m / 4 m / 5 m / 6 m / 8 m / 10 m.
• Available powers: 40W / 60W / 80W / 100W / 120W / 160W / 200W.
• Supply: AC110-120V / AC220-240V, 50-60Hz.
• Installation: wall-mounted or surface ceiling — installation offered as an option.

Characteristics / technical specifications

• Type: Cylindrical flexible LED luminaire with 360° emission.
• Profile: Aluminium 6063 with silicone finish.
• Supply: AC110-120V / AC220-240V, 50-60Hz.
• Beam angle: 360°.
• Diameter: Ø22 mm.
• Available lengths: 2 m / 3 m / 4 m / 5 m / 6 m / 8 m / 10 m.
• Powers: 40W / 60W / 80W / 100W / 120W / 160W / 200W.
• LED: Epistar.
• Emission colours: 2700K / 3000K / 4000K / 6000K / red / green / blue / pink / violet / RGB.
• Luminous efficacy: 100 to 110 lm/W.
• Power factor: 0.90.
• SDCM: < 3.
• Installation: Wall-mounted or surface ceiling — installation optional.
• Base colours: Matte black / Matte white.
• Warranty: 5 years.
• Indicative price: From €3,000 excl. VAT, depending on configuration.
• Delivery: Europe, quoted per project.
