Dental facility acoustic lighting EVO Acoustic

for waiting roomspendantLED

Overview

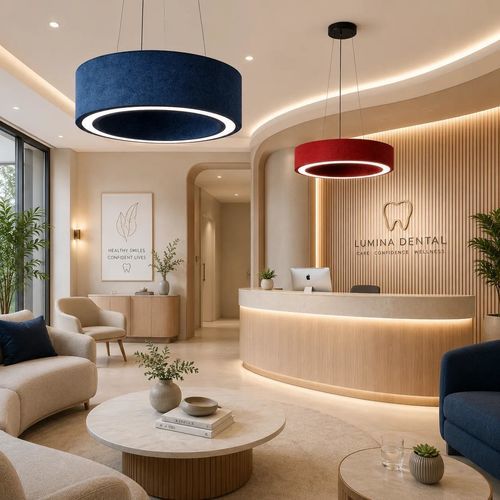

EVO Acoustic combines architectural LED lighting with a felt acoustic panel to create more comfortable, quieter and visually coherent spaces. Solution designed for receptions, waiting rooms, clinics and demanding professional environments.

Key points

• Acoustic LED pendant with felt panel
• From €1,000 excl. VAT (indicative price depending on configuration)
• More than 48 colours available for the acoustic panel
• Optional installation according to project
• 5-year luminaire warranty

Recommended applications

• Waiting area
• Reception
• Premium dental practice
• Clinic / medical centre
• Professional workspace
• Architectural projects

Visual and acoustic comfort

• Felt panel designed to improve acoustic comfort in professional spaces
• Uniform, comfortable light adapted to contemporary environments
• Integrated anti-glare

Customization & finishes

• Acoustic panel colours: red, green, blue, grey and more than 48 colours available on request
• Finish groups: standard colours and premium colours on request

Functions & options

• Available colour temperatures: 3000K / 4000K / 6000K
• Drivers: BOKE / Cupower
• Control modes: ON/OFF, 0-10V dimming, Triac dimming, DALI dimming
• Flicker-free operation
• Beam angle: 120°

Technical specifications

• Type: Acoustic LED pendant
• Supply: AC100-277V / AC220-240V, 50-60Hz
• Profile: Aluminium 6063 with prismatic diffuser and felt acoustic panel
• Profile dimensions: L50 × H75 mm
• Available heights: 102 mm / 254 mm / 381 mm
• Available diameters: Ø474 mm / Ø674 mm / Ø804 mm / Ø924 mm / Ø1074 mm / Ø1224 mm
• Drivers: BOKE / Cupower
• Luminous efficacy: 100 to 110 lm/W
• Colour temperatures: 3000K / 4000K / 6000K
• Anti-glare: Yes
• CRI: > 80 Ra
• Power factor: PF > 0.90
• Operation: Flicker-free
• Beam angle: 120°
• Functions available: ON/OFF / 0-10V dimming / Triac dimming / DALI dimming
• Installation: Suspension — installation optional depending on project
• Acoustic panel colours: red, green, blue, grey, more than 48 colours available on request
• IP rating: IP20
• Luminaire warranty: 5 years
• Indicative price: From €1,000 excl. VAT, depending on configuration
• Delivery: Europe, cost estimated per project
