Pendant lighting EVO Dual Acoustic

for dental facilitiesLED

Overview

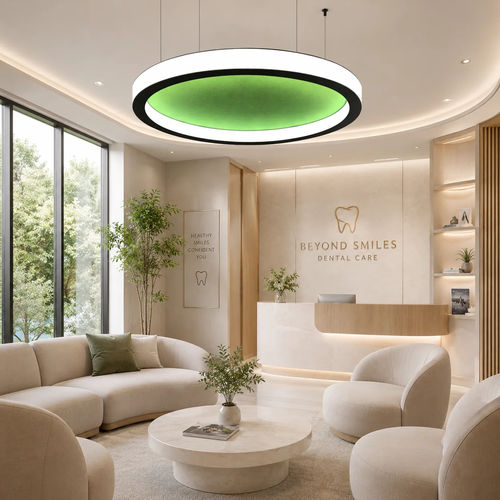

EVO Dual Acoustic is a circular LED acoustic pendant with dual light emission (interior and exterior). Designed to combine a premium ring design, lighting performance and acoustic comfort, it is suitable for treatment rooms, waiting areas, reception zones and offices. The felt acoustic panel helps improve the sound environment with an NRC up to 0.7 depending on configuration.

Key benefits

• Dual light emission (interior + exterior) for a strong visual presence.
• Acoustic comfort via felt panel (NRC up to 0.7 depending on configuration).
• Glare control thanks to a prismatic diffuser adapted to professional environments.
• 5-year luminaire warranty.
• Installation available as an option depending on the project.

Recommended applications

• Premium treatment room
• Waiting room
• Reception area
• Office
• Clinic / medical center
• Contemporary projects

Options and customization

• Colour temperatures: 3000K / 4000K / 6000K
• Control modes: ON/OFF, 0-10V dimming, Triac dimming, DALI dimming
• Acoustic panel colours: over 48 colours available (e.g. red, green, blue, grey)
• Available diameters: Ø450 / Ø632 / Ø800 / Ø1032 / Ø1232 mm
• Installation type: pendant (installation offered as an option depending on project)
• Project plan study included in project support

Specifications / technical data

• Type: Circular LED acoustic pendant — interior and exterior emission
• Profile: Aluminium 6063 with prismatic diffuser and felt acoustic panel
• Profile dimensions: W50 × H50 mm
• Supply: AC100-277V / AC220-240V, 50-60Hz
• Drivers: BOKE / Cupower
• Colour temperatures: 3000K / 4000K / 6000K
• Luminous efficacy: 100 to 110 lm/W
• Glare control: Yes (prismatic diffuser)
• CRI: 80Ra
• Power factor: 0.90
• Flicker: Flicker-free operation
• Beam angle: 120°
• Control modes: ON/OFF, 0-10V, Triac, DALI
• Available diameters: Ø450 / Ø632 / Ø800 / Ø1032 / Ø1232 mm
• Power: 40W to 115W
• Luminous flux: 4,000 lm to 9,500 lm
• Acoustic colours: Red, green, blue, grey + over 48 colours available
• Acoustic performance: NRC up to 0.7 depending on configuration (supplier data)
• IP rating: IP20
• Luminaire warranty: 5 years
• Indicative price: From €3,000 excluding VAT depending on configuration
• Delivery: Europe (priced per project)
