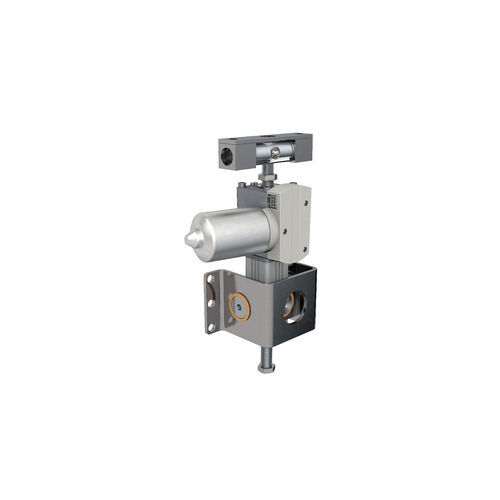

Linear actuator CAMT
electricmedical

linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric
Applications
medical
Load capacity

6,000 N

Speed

Max.: 6.5 mm/s

Min.: 0 mm/s

Description

Smart design with both front and rear attachments Extra versitality due to its adaptability Easily installed because of its plug and play system Maintenance-free, no oil leakage Safety first with self-locking and adjustable mechanical hard end stop Conforms with medical standards Free combination to allow for surgical module Features Medically approved compliant with IEC 60601-1 Back-up nut as standard Safety factor up to 4 Self-locking Let us embrace our new comer, the novel CAMT linear actuator, in the medical product portfolio. We got to learn during interviews with physicians or care-givers that they would have something really rigid without any play for the whole operation. Also accurate positioning is on their wish list because sometime you need to re-produce the exact position during for example imaging process. Today, we are proud to show you our latest development CAMT actuator with unique design to assist you with the most demanding parts of surgical tables or chairs. CAMT actuator keeps the movement smooth through the whole process of operation or imaging, also when the direction changes. This gives a much improved patient experience. It can be ordered as a single actuator or be combined with a lifting column to achieve combined motions in any direction.

Catalogs
