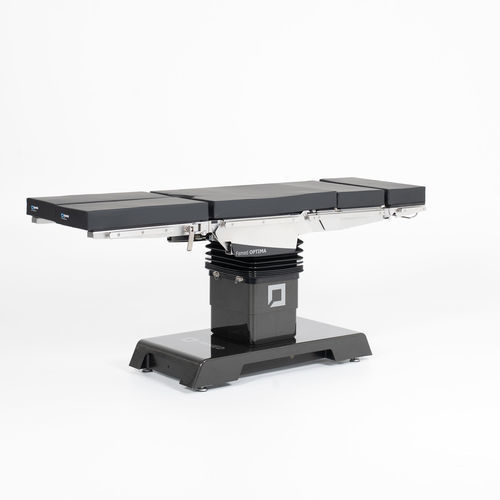

Universal operating table Famed OPTIMA (5.70, 5.60) X-Line

hydraulicadjustable heighttilting

Famed OPTIMA is an operating table featuring the xMotionPro™ ultra-precise control system and adjustable speed of tabletop movements. The xMobility360™ super-mobile base facilitates manoeuvring and positioning the table in the operating room. The modular design enables quick replacement of tabletop segments, while high-quality stainless steel and carbon fibre ensures durability and improves disinfection. A wide rangeof dedicated accessories, combined with above-average precision, makes the tableversatile for many medical procedures.

VERSATILE AND CUSTOMISABLE

• Modular design and a wide range of accessories helps adapting the table to most procedures.
• All table movements (except for headrest setting) are operated from the remote control*.
• 5-section tabletop as standard with optional double split footrests (6 tabletop sections**.
• Column and base covers made of carbon fibre or stainless steel in InteliProtectPlus™ technology.
• X-ray-transparent carbon fibre or HPL top.
• Imaging window 1440 mm long (standard).
• Accessories designed for one man handling to reduce table preparation and setup time.

HIGH PRECISION CONTROL

• Three different modes of operation help adjust the speed of the table’s movements to suit surgeon’s needs.
• The xMotionPro™ control system enables table top repositioning with an accuracy of 0.5 mm and 0.1°.
• The table’s immediate response to the press and release a button on the controller ensures precise positioning.
• Wired remote control with display as standard; optional: column-mounted side panel.
• The touchscreen LCD display on the remote control makes it easy to read tabletop setup parameters, battery levels as well as potential collisions and errors.
• 10 available working positions to facilitate patient positioning.
• The system recognises additional tabletop sections,eliminating the risk of collision and alerting the user to take appropriate action.

SUPER-MOBILE DESIGN

• Low base of xMobility360™ (150 mm) and no protruding elements ensure safe access for the C-arm.
• Four 360° swivel wheels and an optional fifth wheel help manoeuvre the table smoothly forward, backward and sideways or rotate it around its axis.
• The wheels are located under the base cover to reduce dirt accumulation and facilitate cleaning.
• Remote-controlled wheel lock  four widely spaced supports hidden in the base ensure stability and security.
• Profiled foot openings on each side of the base enable the surgeon to stand closer to the table for convenient access to the surgical field.
• The reinforced base design ensures safe support for surgeon’s feet during hours long procedures.

* Only with Famed OPTIMA 5.70 version.
** Only with Famed OPTIMA 5.60 version.
