Sterilization cabinet D01
for sterilization basketsfor sterile materialsfor surgical instruments

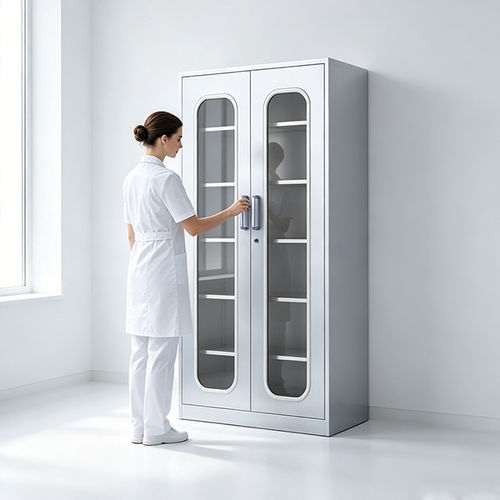

Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments - image - 2
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments - image - 3
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments - image - 4
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments - image - 5
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments - image - 6
Sterilization cabinet - D01 - Fangge Medical - for sterilization baskets / for sterile materials / for surgical instruments - image - 7
Add to favorites
Compare this product
Go to the Fangge Medical website for more information

Characteristics

Type
sterilization
Use
for sterilization baskets, for sterile materials, for surgical instruments, for medical instruments, for instruments
Components
with shelf, with door, with hinged door
Material
stainless steel
Number of doors
2 doors
Height

175 cm
(68.9 in)

Width

96 cm
(37.8 in)

Depth

40 cm
(15.75 in)

Description

Product name
  • Model: D01
  • Size: 960 x 400 x 1750 mm
  • Main use: storage of instrument packs and trays in clinical sterilization areas


Overview
  • Stainless steel cabinet manufactured using combined full welding and spot welding with 304 welding wire; plate actual thickness 0.81 mm
  • Front double-door with tempered glass for visibility and easy access to instrument packs


Applications
  • Operating rooms, sterilization departments, instrument stores
  • Clinical areas requiring visible, dust- and moisture-resistant storage for sterile packs


Key advantages
  • Combined welding process ensures secure joints and uniform finish
  • Smooth, uniform welds using 304 welding wire
  • Plate thickness 0.81 mm for corrosion resistance and structural stability
  • 3C-certified tempered glass and reinforced rubber seals protect contents during handling and transport


Main structure and configuration
  • Double-door design for wide opening and easy removal of packs or trays
  • Internal configuration with ≥ 5 reinforced shelves with ribs under each shelf to increase load capacity
  • Top-bottom rod locking mechanism for secure closure
  • Triple-lip rubber seal and reinforced rubber strip to stabilize the glass
  • Häfele control lock for controlled management of sterile instruments


Customization support
  • Dimensions, number of shelves, glass type and lock options customizable to facility layout and workflow
  • Custom configurations available on request


Features / Technical specifications
  • Model: D01
  • Overall size: 960 x 400 x 1750 mm
  • Material: stainless steel plates (actual thickness 0.81 mm)
  • Welding: full welding + spot welding with 304 welding wire
  • Shelves: ≥ 5 reinforced shelves with ribs
  • Door: double front doors with top-bottom rod locking
  • Glass: 3C-certified tempered glass
  • Seal: triple-lip rubber seal and reinforced rubber strip
  • Lock: Häfele control lock
  • Customization: sizes and configurations available on request
