Sterilization cabinet D02
securitysupplykey

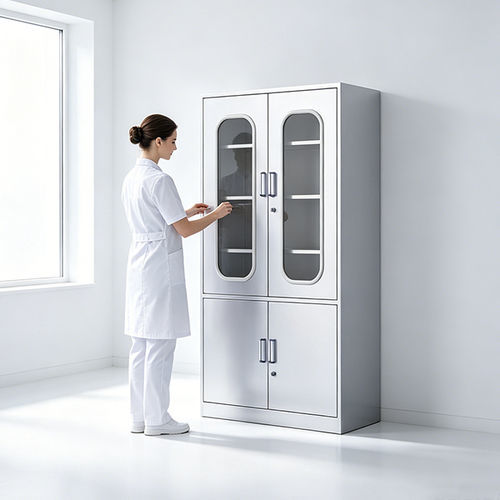

Sterilization cabinet - D02 - Fangge Medical - security / supply / key
Sterilization cabinet - D02 - Fangge Medical - security / supply / key
Sterilization cabinet - D02 - Fangge Medical - security / supply / key - image - 2
Sterilization cabinet - D02 - Fangge Medical - security / supply / key - image - 3
Sterilization cabinet - D02 - Fangge Medical - security / supply / key - image - 4
Sterilization cabinet - D02 - Fangge Medical - security / supply / key - image - 5
Sterilization cabinet - D02 - Fangge Medical - security / supply / key - image - 6
Sterilization cabinet - D02 - Fangge Medical - security / supply / key - image - 7
Add to favorites
Compare this product
Go to the Fangge Medical website for more information

Characteristics

Type
key, security, sterilization, supply
Use
for sterile materials, for medical instruments, for healthcare facility
Components
with door, with shelf
Material
stainless steel
Color
transparent
Height

175 cm
(68.9 in)

Width

96 cm
(37.8 in)

Depth

40 cm
(15.75 in)

Description

Product overview
  • The D02 medical instrument cabinet is a two-section stainless steel storage unit designed for organized storage and secure management of sterile instrument packs, surgical sets and consumables.
  • Construction combines full welding and spot welding using 304 welding wire; upper section with tempered glass doors for visual access; lower section with fully enclosed stainless steel door for heavier loads.


Applications
  • Storage and controlled presentation of sterile instrument packs, surgical sets and medical consumables
  • Suitable for operating rooms, CSSD (sterile supply), nurse stations, clinics, dental offices and aesthetic medicine facilities


Structure and functional points
  • Cabinet structure
    • Integrated stainless steel body with actual plate thickness 0.81 mm for corrosion resistance and rigidity
    • Hybrid welding process (full weld + spot weld) with 304 welding wire for smooth, uniform weld seams
  • Storage configuration
    • Two-section design: upper section with tempered glass doors for visual inspection; lower section with fully enclosed stainless steel door for higher load capacity
    • Adjustable shelves with ribs under partitions and five removable spacers for instrument packs
  • Safety and sealing
    • Automotive-grade rubber seal stabilizes glass edges and improves protection against dust and moisture
    • 3C certified tempered glass for impact resistance during transport and use
    • Häfele three-point control lock available for secure access management


Customization
  • Dimensions, number of shelves, door types and lock configurations can be customized on request to match departmental workflows and instrument pack dimensions


Technical specifications
  • Model: D02
  • Dimensions: 960×400×1750 mm
  • Material: 304 stainless steel, actual plate thickness 0.81 mm
  • Welding: full welding + spot welding, 304 welding wire
  • Glass: 3C certified tempered glass
  • Doors: upper tempered glass doors; lower fully enclosed stainless steel door
  • Shelves: reinforced shelves with ribs; five spacers included
  • Seal: automotive-grade rubber seal
  • Lock: Häfele three-point control lock available
  • Customization: available on request
