Stainless steel instrument table B09

manuel

Product Overview

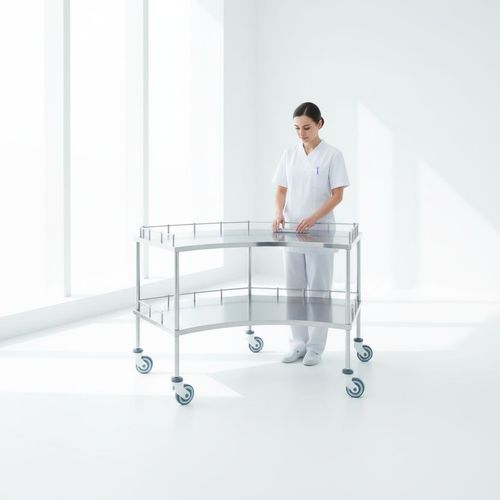

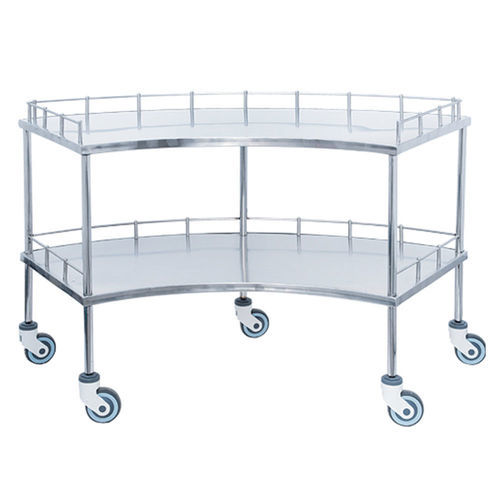

B09 Semicircular Instrument Table is designed with an ergonomic fan-shaped tabletop and reinforced full-weld construction. Manufactured in stainless steel with a polished finish, it provides stable placement, high load capacity, easy disinfection and suitable mobility for operating rooms and clinical environments.

Key Features

• Ergonomic semicircular tabletop for convenient access during procedures
• Reinforced full welding and thick-walled tubing for enhanced structural strength
• Polished stainless steel surface: waterproof, corrosion-resistant and easy to disinfect
• Hidden 16 mm plywood reinforcement under the top for flatness and noise reduction
• High-performance silent medical casters with TPR wheels and nylon frames; 5-year warranty

Technical Specifications

• Model: B09
• Top size (product header): 1400 × 500 × 800 mm
• Overall dimensions (L×W×H): 1400 × 500 × 868 mm
• Tabletop height from floor: 800 mm
• Guardrail height: 62 mm
• Net weight: 24.7 kg; Gross weight: 31.7 kg
• Material: Stainless steel with fine polishing treatment
• Tube wall thickness ≥ 1.0 mm; plate thickness 0.81 mm; tabletop load: 40 kg (double-layer design)
• Construction: Full welding using 304 welding wire; reinforced base plate; no sharp edges
• Casters: 50° high-elasticity TPR wheels, industrial nylon frames, deep-groove bearings, ultra-silent; 5-year warranty

Applications
Intended for use in operating rooms, treatment rooms and examination rooms for placement of surgical instruments, dressings and medical consumables to support clinical workflows and improve procedural efficiency.

Packaging & Installation
Shipped with protective packaging and pre-packed caster accessories for immediate use; no on-site caster assembly required. Product inspected before shipment to ensure readiness for clinical use.
