Hospital trolley B10

for sterilization chamberssurgicalfor operating rooms

Overview

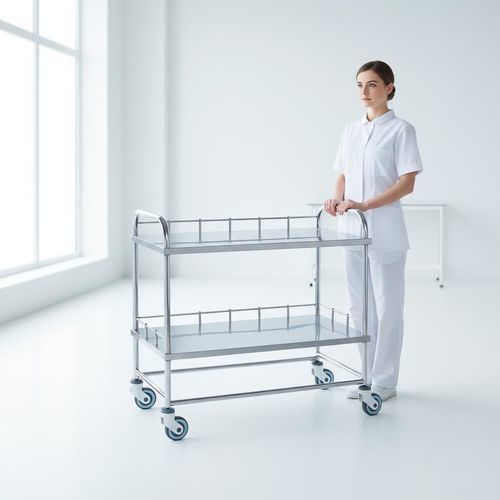

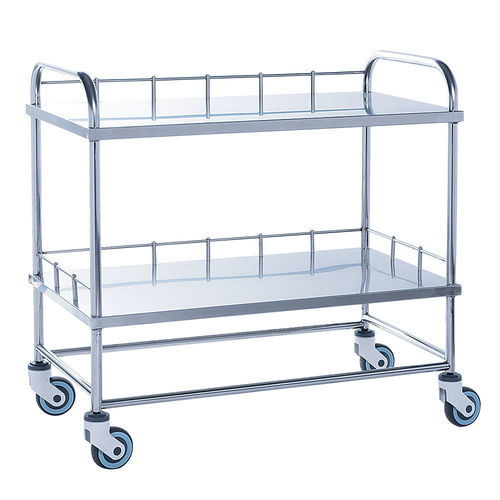

B10 stainless steel instrument trolley designed for organized instrument management in operating rooms. Features precision welding, reinforced dual-layer high-load tabletop, ergonomic two-way handle and smooth, silent medical casters. Supplied fully assembled and inspected; packaged in thickened cartons for secure transport. Customizable in size, number of layers, drawers, guardrails and casters.

Core Advantages

• Precision welding craftsmanship and reinforced dual-layer high-load tabletop
• Ergonomic two-way integrated bent handle with comfortable grip and rounded edges
• Smooth, silent Φ100mm medical double-brake & double-directional casters (TPR wheels, nylon frame), rust-resistant
• Robust overall construction for reliable on-site deployment

Product Performance

• Frame: 1.0 mm stainless steel tubes; panels: 0.81 mm prime stainless steel plate — impact-resistant and corrosion-proof
• Welding: full welding plus spot welding with dedicated welding wire for smooth, firm joints
• Corner penetration with Φ25 mm stainless steel tubes for high rigidity and no deformation
• Dual-layer tabletop with support tubes; single-layer load capacity up to 50 kg
• Solid stainless steel guardrails (Φ12 mm uprights + Φ8 mm cross bars) to prevent items falling
• Φ100mm medical double-brake & double-directional casters with 5-year warranty; single-wheel load ≥50 kg
• Delivered fully assembled and quality-inspected; ready to use on arrival
• Thickened carton packaging to ensure safe transportation
• Customizable configurations: size, layers, drawers, guardrails, casters

Dimensions

• Listed size: 950×500×800 mm
• Overall dimensions (L×W×H): 950×500×920 mm
• Top tabletop height from floor: 800 mm
• Guardrail height: 62 mm
• Net weight: 15.5 kg
• Gross weight: 19.5 kg
• Caster warranty: 5 years

Application Scenarios
Suitable for operating rooms, surgical wards, procedure rooms, clinics and sterilization centers for sterile instrument preparation, intra-operative instrument placement and post-operative contaminated supply sorting and transport.

Selling Points
Stable structure, hygienic construction and easy cleaning and maintenance.

Technical Specifications

• Model: B10
• Material: 1.0 mm stainless steel tubes; 0.81 mm prime stainless steel plate
• Welding: full welding + spot welding; penetration welding with Φ25 mm tubes at corners
• Tabletop: dual-layer with support tubes; single-layer load capacity 50 kg
• Guardrails: Φ12 mm uprights + Φ8 mm cross bars
• Handle: ergonomic two-way integrated bent handle with rounded edges
• Casters: Φ100mm medical double-brake & double-directional casters; TPR wheels; nylon frame; single-wheel load ≥50 kg; 5-year warranty
• Assembly: supplied fully assembled and inspected
• Packaging: thickened carton for safe transport
• Customization: available for size, layers, drawers, guardrails, casters
• Net weight: 15.5 kg; Gross weight: 19.5 kg
