Drug delivery infusion station B08S

adult

Overview

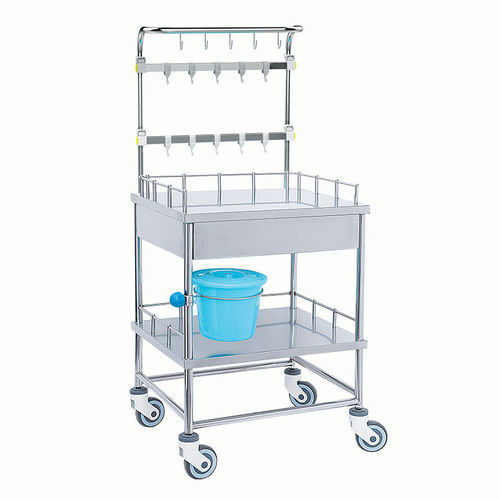

The B08S stainless steel infusion trolley is designed for clinical infusion and nursing workflows. It features a penetration-welded frame, double-layer platform and an adjustable infusion system to support daily tasks in wards, treatment rooms and clinics.

Patents

• Patent No.: 201621201270.X
• Patent No.: 201821940610.X

Core advantages

• Penetration-welded frame for overall structural integrity
• Double-layer platform with support tubes for secure load distribution
• Adjustable infusion system with removable hooks and label slots
• Large stainless steel drawers with three-section silent slides

Product performance

• Premium stainless steel body with full-weld and seamless finish
• Thickened stainless steel tubes (≥1.0 mm) for impact resistance and high load capacity
• 0.81 mm thick plates; top tabletop load capacity: 40 kg
• Solid stainless steel guardrails and columns for long-term durability
• Penetration welding structure for a sturdy, attractive appearance
• Large drawers on high-strength three-section silent slides for smooth, noiseless operation
• NIMBLE system supports adjustable infusion stand; removable ABS hooks with label slots
• One blue 300° rotating detachable waste bucket for convenient disposal
• Super-silent medical casters (TPR wheels, nylon frame) with 5-year warranty
• Fully inspected and ready to use out of box; no installation required
• Packed in special thickened carton for secure delivery

Dimensions

• Overall dimensions (L×W×H): 600 mm × 470 mm × 868 mm / 1200 mm
• Top tabletop height from floor: 800 mm
• Guardrail height: 62 mm
• Caster warranty: 5 years

Application scenarios
Suitable for hospital wards, infusion rooms, nursing stations, treatment rooms and outpatient clinics for infusion therapy, medication management, nursing care and routine clinical procedures.

Selling points

• Clinical-oriented hygienic design for easy cleaning and maintenance

Technical specifications

• Model: B08S
• Material: Stainless steel body with polished finish
• Frame structure: Penetration-welded
• Tube thickness: ≥1.0 mm
• Plate thickness: 0.81 mm
• Top tabletop load capacity: 40 kg
• Platform: Double-layer design with support tubes
• Guardrail height: 62 mm
• Dimensions: 600 × 470 × 868 mm / 1200 mm (L×W×H)
• Top tabletop height: 800 mm from floor
• Drawers: Stainless steel wide drawers with three-section silent slides
• Infusion system: Adjustable infusion stand supported by NIMBLE system; removable ABS hooks with label slots
• Waste storage: Blue 300° rotating detachable waste bucket
• Casters: Super-silent medical casters (TPR wheels, nylon frame), 5-year warranty
• Packaging: Special thickened carton
• Ready to use: Fully inspected, no installation required
