Emergency stretcher FG-E1-I

foldingplastic2-section

Seeking global distributors. OEM & ODM services available.

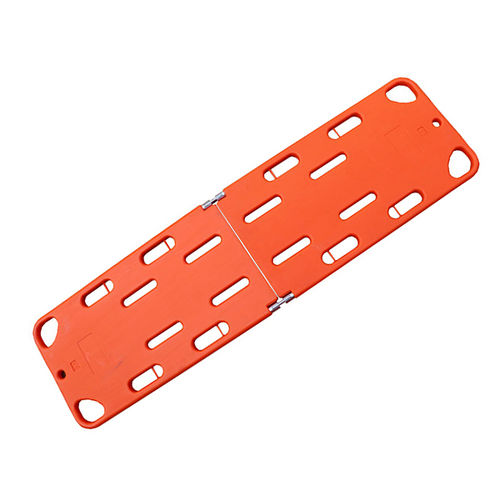

FG-E1-I Two Folding Stretcher

Core Advantage
Hybrid aluminum-HDPE folding stretcher with 159kg load capacity, 50% space-saving storage, and full medical imaging transparency. Built for rapid deployment in confined-space rescues.

Product Specifications​​

• Model: FG-E1-I (Foldable Design)
• Aliases: Collapsible Spine Board, Tactical Rescue Litter
• Deployed Size: 1870×500×40mm
• Folded Size: 960×550×90mm
• Packaged Size: 970×560×100mm
• Max Load: ≤159kg
• Net Weight: 8.8kg
• Gross Weight: 10kg

Key Features​​

• Aluminum-HDPE Hybrid Frame: Combines aircraft-grade aluminum tubes with blow-molded polyethylene for 30% weight reduction vs. traditional models.
• One-Second Fold Mechanism: Transforms to 51% original size without tool disassembly.
• Radiolucent Surface: Zero metallic interference for X-ray/MRI/CT scans during transport.
• 12 Reinforced Handholds: 360° access for vertical/horizontal lifts in narrow spaces (e.g., stairwells).
• CPR-Ready Platform: Locking joints maintain rigidity for chest compressions mid-transport.
• 0.03m³ Buoyancy: Supports adult in water rescues.

Application Scenarios​​
Essential for helicopter EMS, urban search-and-rescue (USAR), boat emergencies, and mass-casualty triage. Passes through standard doorways (78cm) when folded.
