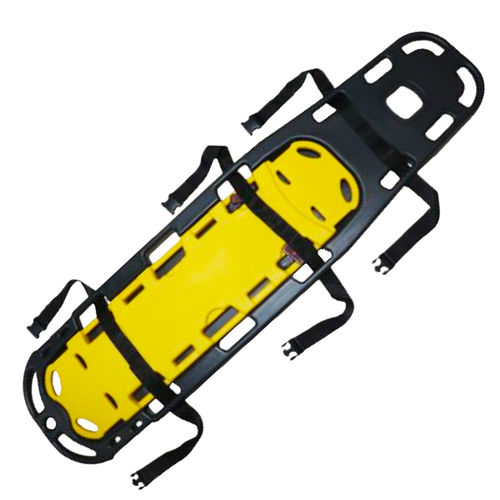

Plastic backboard stretcher FG-E5

X-ray transparent

Seeking global distributors. OEM & ODM services available.

FG-E5 Adult and Child Spine Stretcher

Core Specifications

• Adult Unit (FG-E5)
• Deployed Size: 1830×445×60mm
• Packaged Size: 1850×475×70cm  (1pc/CTN)
• Load Capacity: ≤159kg
• Net Weight: 7.64kg
• Gross Weight: 11.85kg
• Pediatric Unit (FG-E5(I))
• Deployed Size: 1200×320×45mm
• Packaged Size: 1850×475×70mm  (1pc/CTN)
• Load Capacity: ≤159kg
• Net Weight: 2.51kg
• Gross Weight: 3kg

Key Features

• Dual-Board Modularity: Adult and pediatric units function independently or combined for multi-casualty scenarios.
• HDPE Blow-Molded Construction: Impact-resistant, waterproof, and corrosion-free. Operates in -30°C to 60°C extremes.
• Full Medical Imaging Transparency: Zero interference with X-ray, MRI, or CT scans during transport.
• 16 Perimeter Handholds: Enables 4-6 rescuers to lift simultaneously in confined spaces.
• CPR-Ready Rigidity: Stable surface for uninterrupted chest compressions during transport.
• 0.05m³ Buoyancy (Combined): Floats up to adult + child in water rescues.


Application Scenarios
Ideal for disaster response (earthquakes, floods), ER triage, aquatic search-and-rescue, and confined-space extrication (e.g., car crashes, elevator shafts).
