IV injection needle Farcocathe I.V. Cannula

butterflysterilesafety

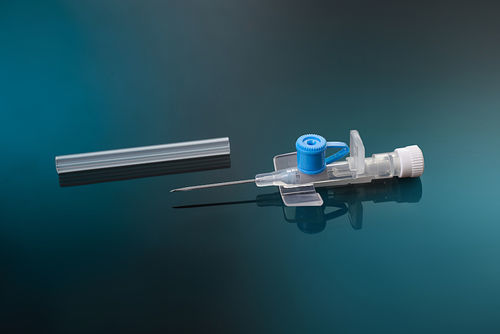

Farcocathe I.V. Cannula is an intravenous access device designed for infusion therapy and secure peripheral venous cannulation. The device integrates a kink-resistant PTFE/FEP catheter, visible flashback chamber for blood confirmation, and features for reliable fixation and controlled injections.

Key features

• Kink-resistant tapered PTFE/FEP catheter, clear and radiopaque for imaging confirmation.
• Flexible fixation wings for secure, low-profile dressing and catheter stabilisation.
• Injection port with non-return silicone valve enabling safe bolus administration.
• Catheter pull force > 10 N; needle pull-out force > 40 N (measured).
• Transparent flashback chamber for immediate visual confirmation of venous access.
• Individually packed in soft packaging for single-use handling.
• EO sterile, supplied for clinical use.

Technical specifications

• Packing (inner / master carton): 100 / 1000 pcs
• 14 G — Colour code: Orange; Ext. dia: 2.1 mm; Length: 45 mm; Flow rate: 300 ml/min
• 16 G — Colour code: Grey; Ext. dia: 1.8 mm; Length: 45 mm; Flow rate: 200 ml/min
• 17 G — Colour code: White; Ext. dia: 1.5 mm; Length: 45 mm; Flow rate: 140 ml/min
• 18 G — Colour code: Green; Ext. dia: 1.3 mm; Length: 45 mm; Flow rate: 90 ml/min
• 20 G — Colour code: Pink; Ext. dia: 1.1 mm; Length: 33 mm; Flow rate: 61 ml/min
• 22 G — Colour code: Blue; Ext. dia: 0.9 mm; Length: 25 mm; Flow rate: 36 ml/min
• 24 G — Colour code: Yellow; Ext. dia: 0.7 mm; Length: 19 mm; Flow rate: 18 ml/min
• 26 G — Colour code: Violet; Ext. dia: 0.6 mm; Length: 19 mm; Flow rate: 14 ml/min
