IV injection needle I.V. Cannula

butterflysterile14G

Overview

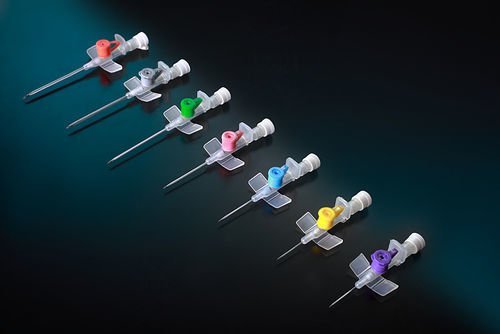

Kathtek I.V. Cannula provides venous access for infusion therapy and blood sampling. It combines a tapered, kink-resistant PTFE/FEP catheter with flexible wings and suture holes, an injection port with a non-return silicone valve, and a transparent flashback chamber for immediate visual confirmation.

Main features

• Tapered and kink resistant PTFE/FEP, clear / radiopaque.
• Flexible wings with suture holes to provide easy and secure fixation.
• Injection port with non-return silicone valve.
• Catheters pull force > 10 N.
• Needle pull-out force > 40 N.
• Transparent flashback chamber for easy visual observation.
• Individual packaging in a blister pack.

Technical specifications

• Gauge 14 G — Colour code: Orange; External diameter: 2.1 mm; Length: 45 mm; Flow rate: 300 ml/min.
• Gauge 16 G — Colour code: Grey; External diameter: 1.8 mm; Length: 45 mm; Flow rate: 200 ml/min.
• Gauge 17 G — Colour code: White; External diameter: 1.5 mm; Length: 45 mm; Flow rate: 140 ml/min.
• Gauge 18 G — Colour code: Green; External diameter: 1.3 mm; Length: 45 mm; Flow rate: 90 ml/min.
• Gauge 20 G — Colour code: Pink; External diameter: 1.1 mm; Length: 33 mm; Flow rate: 61 ml/min.
• Gauge 22 G — Colour code: Blue; External diameter: 0.9 mm; Length: 25 mm; Flow rate: 36 ml/min.
• Gauge 24 G — Colour code: Yellow; External diameter: 0.7 mm; Length: 19 mm; Flow rate: 18 ml/min.
• Gauge 26 G — Colour code: Violet; External diameter: 0.6 mm; Length: 19 mm; Flow rate: 14 ml/min.
• Packing (inner / master carton): 100 / 1000 pcs.

Packing and sterilization

• Packing (inner / master carton): 100 / 1000 pcs.
• EO sterile.
