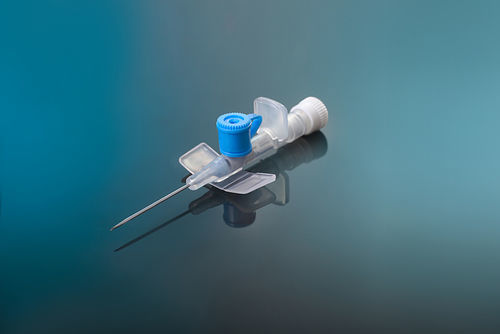

IV injection needle Inpharven I.V. Cannula

butterflysterile14G

Overview
Inpharven I.V. Cannula is a tapered, kink-resistant intravenous cannula intended for infusion therapy. It features a PTFE/FEP catheter, flexible fixation wings and an injection port equipped with a non-return silicone valve. The device is supplied sterile and individually blister-packed for single-patient use.

Key features

• Tapered, kink-resistant PTFE/FEP catheter, clear and radiopaque.
• Flexible wings for secure and easy fixation.
• Injection port with non-return silicone valve.
• Catheter pull force > 10 N.
• Needle pull-out force > 40 N.
• Transparent flashback chamber for visual confirmation.
• Individual blister packaging.
• EO sterile.

Technical specifications

• Catheter sizes and performance:
  • 14 G — Colour code: Orange — Ext. dia: 2.1 mm — Length: 45 mm — Flow rate: 300 ml/min
  • 16 G — Colour code: Grey — Ext. dia: 1.8 mm — Length: 45 mm — Flow rate: 200 ml/min
  • 17 G — Colour code: White — Ext. dia: 1.5 mm — Length: 45 mm — Flow rate: 140 ml/min
  • 18 G — Colour code: Green — Ext. dia: 1.3 mm — Length: 45 mm — Flow rate: 90 ml/min
  • 20 G — Colour code: Pink — Ext. dia: 1.1 mm — Length: 33 mm — Flow rate: 61 ml/min
  • 22 G — Colour code: Blue — Ext. dia: 0.9 mm — Length: 25 mm — Flow rate: 36 ml/min
  • 24 G — Colour code: Yellow — Ext. dia: 0.7 mm — Length: 19 mm — Flow rate: 18 ml/min
  • 26 G — Colour code: Violet — Ext. dia: 0.6 mm — Length: 19 mm — Flow rate: 14 ml/min
  • Packing (inner / master carton): 100 / 1000 pcs
