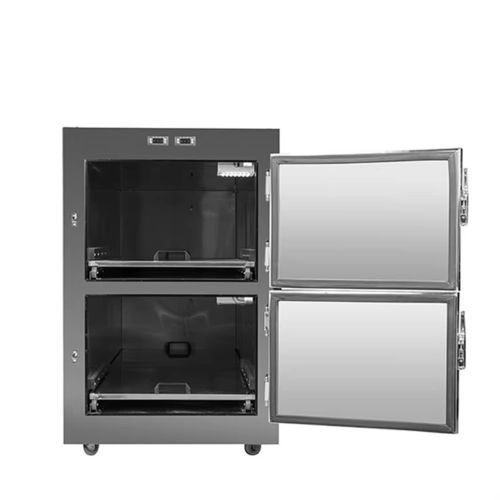

Mortuary cooling unit YSSTG0102

Overview

The YSSTG0102 mortuary freezer is a refrigerated cabinet designed for temporary storage of human bodies in hospitals, morgues and pathology departments. It provides computerized temperature regulation, forced-air circulation and options for continuous temperature logging and data export.

Key features

• Computer-controlled temperature system with 0.1 °C display resolution and calibration capability.
• Forced cold-air circulation with controlled fans to ensure uniform internal temperature across trays.
• Optional 24-hour temperature tracing, recording and printing with multiple internal sensors and external status indicators; password-protected data printing.
• Independent refrigeration per chamber to allow individual control and redundancy.
• Refrigeration components include imported compressor (DANFOSS), Bi‑Sonic dual fan for low-temperature operation and EBM heat-extraction fan; fluoride-free refrigerant and copper evaporator piping.
• Interior and exterior constructed in stainless steel; polyurethane foam insulation; gel-strip door gasket and tray rollers for easy handling.

Safety & alarms

• Comprehensive alarm system covering high/low temperature, sensor fault, door open, power failure and low battery.
• Keyboard lock, user/supervisor access separation and password protection for critical functions and printing.
• Fault-code display and battery-backed display/alarms to maintain alerts during power interruptions.

Options & power

• Optional emergency power supply (EPS) and DC24V→AC220V inverter to maintain operation under special power conditions.
• PC communication via RS-232 for diagnostics, temperature curve viewing and data export (management software optional).
• Built-in lithium battery to support alarms and display for extended time after mains failure (specifications vary by configuration).

Technical specifications

• Model: YSSTG0102
• Capacity: 2 bodies
• Voltage: 220 V / 50 Hz (wide band 187–242 V)
• Input power: 560 W
• Adjustable temperature range: approx. -16 °C to 6 °C
• Typical maintained temperature: 3 ± 2 °C
• Temperature display precision: 0.1 °C; adjustment step 0.1 °C
• Exterior dimensions (W×D×H): 850 × 2550 × 1200 mm
• Weight: approx. 230 kg
• Number of compressor units: 2

Applications

• Short- to medium-term storage of bodies in hospital mortuaries, funeral homes and pathology departments where controlled refrigeration and traceable records are required.
