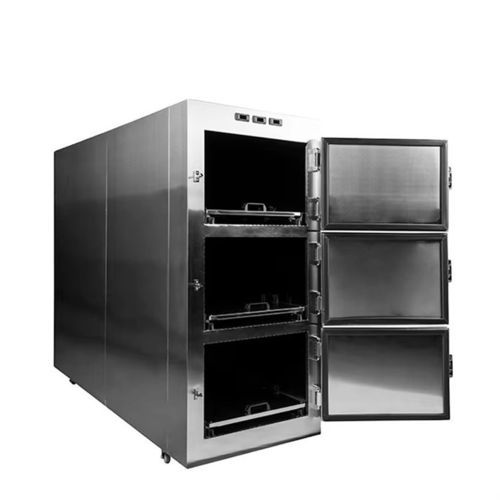

Mortuary cooling unit YSSTG0103
Add to favorites
Compare this product
Description
Overview
Key features
Monitoring & recording (optional)
Safety & alarms
Refrigeration system
Technical specifications
Applications
- Stainless-steel mortuary refrigerator designed for controlled cold storage and freezing of human remains in hospitals, funeral homes and forensic departments. Computer-controlled temperature management and forced-air circulation ensure uniform preservation conditions.
Key features
- Computerized temperature control: setpoint adjustable from -16°C to 6°C; display and control resolution 0.1°C; three-digit high-brightness display.
- High-resolution temperature calibration: display/calibration range -10.0°C to 10.0°C in 0.1°C increments.
- Forced cold-air circulation with intelligent fan control for interior temperature uniformity.
Monitoring & recording (optional)
- Optional 24-hour recording/printing system with imported recorder and multiple internal sensors (typically 4 or 2); dual external indicators for upper/lower points; power-off memory and password-protected printing; RS-232 PC communication for temperature-curve diagnostics (optional).
Safety & alarms
- Comprehensive safety system: keyboard lock and password protection, operator/supervisor menu separation, configurable alarm temperature ranges.
- Seven fault alarms: high/low temperature, sensor failure, door open, power failure, low backup battery, low voltage; failure position code display.
- Three alarm modes: buzzer, flashing, remote signal; start-delay and interval protection; automatic recording of max/min temperatures; built-in lithium accumulator supports display and alarms up to 72 hours after power loss.
Refrigeration system
- High-performance refrigeration: original DANFOSS compressor, Bi-Sonic double fan for low-temperature/high-humidity resistance, EBM heat-extraction fan (Germany), fluoride-free refrigerant for environmental compliance.
Technical specifications
- Model YSSTG0103
- Capacity: 3 bodies
- Voltage: 220V/50Hz
- Input power: 1050 W
- Internal temperature range: 5 to -10 °C (operational), controller adjustable -16°C to 6°C
- Exterior size (W×D×H): 850×2520×1700 mm
- Weight: 400 kg
- Operating freeze value (as listed): -18 °C
- Model YSSTG0109
- Capacity: 4 bodies
- Voltage: 220V/50Hz
- Input power: 2610 W
- Internal temperature range: 5 to -10 °C (operational), controller adjustable -16°C to 6°C
- Exterior size (W×D×H): 2300×2360×1785 mm
- Weight: 990 kg
- Operating freeze value (as listed): -16 °C
- Temperature controller: set-value -16°C to 6°C; display increment 0.1°C; calibration -10.0°C to 10.0°C (0.1°C step).
- Options: EPS emergency supply, DC24V–AC220V inverter, remote alarm interface, data management software.
Applications
- Designed for hospital mortuaries, funeral homes, forensic pathology departments and thanatology laboratories requiring traceable temperature control and alarmed backup.
