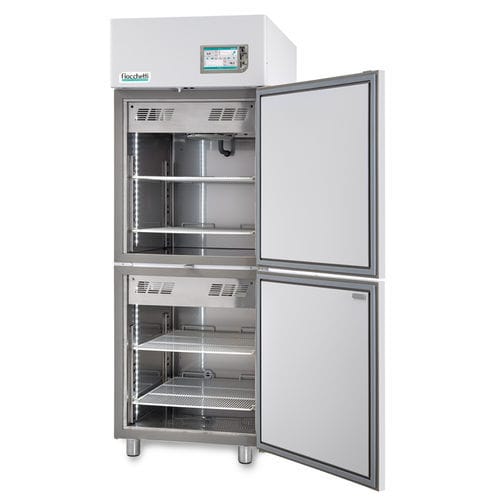

Blood plasma refrigerator PLASMA-SUPERARTIC 2T 700 TOUCH

for vaccineshospitalblood bank

Overview
Combined medical refrigerator‑freezer designed to store blood at positive temperatures and plasma at ultralow temperatures in two independent compartments. Model code DMT0702. Touchscreen management and independent data logging for continuous monitoring.

Key features

• Two fully independent compartments: refrigerated compartment +2/+6 °C and freezer compartment down to -40 °C.
• Two solid doors, customizable internal fittings (shelves, drawers, wire baskets) for lab and transfusion workflows.
• 7" full touch controller with multi‑trace graph and editable setpoints; independent DMLP TOUCH recorder with buffer battery for power‑loss logging.
• Remote interfaces: SD, USB, SIM slot (GSM optional), RJ45 and dry contacts for remote alarm; optional electric digital lock.
• Event logging (date, time, alarm type, duration, highest temperature); acoustic and visual alarms with backup power.

Structure and refrigeration

• Inner dimensions (each compartment): 60 x 68 x 70 cm / 60 x 68 x 74 cm.
• Nominal capacity: 350 + 350 L; Net capacity: 260 + 230 L; Total example capacity: 593 L.
• Insulation: high‑density injected PUF (43 kg/m3), water‑based injection, CFC‑free; thickness 60 mm.
• Monocoque structure with plastified atoxic white steel and antibacterial film or inner 18/10 AISI 304 stainless steel; rounded inner corners; 4 height‑adjustable feet.
• Full LED interior lighting, professional ventilated refrigeration, adaptive automatic defrost with condensate collection; Night & Day energy reduction function.

Controller

• 7" full touch microprocessor controller, resolution 0.1 °C, accuracy ±0.3 °C; displays multi‑trace graph, current temperature and editable setpoint, alarm limits and energy consumption.
• Three SD slots for data history, USB port for downloads/updates, SIM slot for optional GSM module.
• Integrated web server (LAN RJ45) and MODBUS TCP/IP; dry contact for remote alarm; product temperature simulation probe.
• DMLP TOUCH module records temperatures and alarms independently during power outages; buffer batteries preserve event logs and alarm function.
• Upgradeable with GSM/Wi‑Fi and compatible with local or cloud monitoring solutions.

Technical specifications

• Model / series: PLASMA-SUPERARTIC 2T — Product code: DMT0702.
• Temperature ranges: +2/+6 °C (blood) | -20/-40 °C (plasma) depending on version.
• Gross capacity: 593 L; Nominal capacity: 350+350 L; Net capacity: 260+230 L.
• External dimensions (WxDxH): 72 x 84 x 203 cm.
• Refrigerant: R290. Energy consumption: 10.5 kWh/24h. Power absorption: kW 0.17 + 1.3 / Amp 1 + 6. Inrush current: Amp 3 + 7.
• Noise level: <60 dBA. Heat rejection EN 12900: 438 W.
• Shelves included: 4 (2+2); wire shelves dims: 56 x 65 cm; drawers up to 3+3 with divider and wire basket options.
• Controller: 7" FULL TOUCH; SD/USB/SIM; RJ45; MODBUS TCP/IP; DMLP TOUCH independent recorder; optional electric digital lock.
• Compliance: Medical Device Directive 93/42/EEC (class IIa) with amendment 2007/47/EEC; registered in Italian MD Repertoire; DIN 13277; 2011/65/CE (RoHS).

Applications and compliance

• Intended for blood banks, transfusion services, hospital blood storage, laboratories and vaccine centres requiring segregated cold and ultracold storage in a single footprint.
• Certified as a medical device and compliant with applicable lab and hospital standards.

Accessories (available on request)

• IoT gateway and cloud/local monitoring (Fiocchetti LAN SUPERVISOR).
• GSM / Wi‑Fi modules, 4‑20 mA module, SD/USB backup accessories.
• Extra shelves, aluminium drawers with/without dividers, plexiglass drawer fronts, stainless wire racks and baskets.
• Caster kit (2 with brake) for model 700, cable pass‑throughs, PT100 probe, condensate evaporation tray, voltage stabilizer, wooden crate packing.
