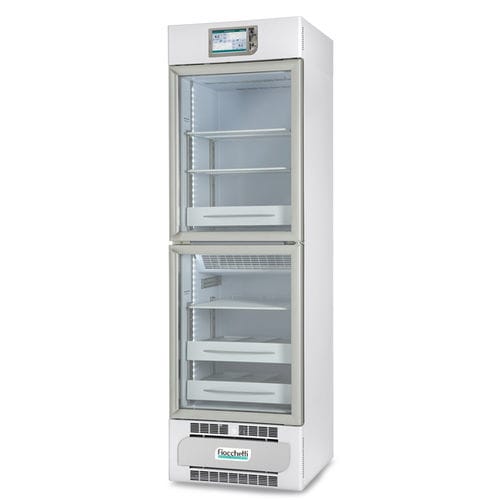

Blood bank refrigerator PLASMA-VISION 2T 400 TOUCH

for blood plasmaupright2 doors

Overview
Combined refrigerator‑freezer certified as a medical device for simultaneous, separate storage of blood and plasma in a single unit (code DMD0402). Two fully independent compartments maintain positive temperatures for blood and negative temperatures for plasma. Double glass doors and configurable internal fittings facilitate organized, traceable storage. Touch controller with data logging and backup ensures event and alarm recording even during power loss.

Structure and Refrigeration - Key features

• Inner dimensions (each compartment): 50 x 48.5 x 68.5 cm / 50 x 48.5 x 73 cm
• Nominal capacity: 200 + 200 L (total 358 L); Net capacity: 170 + 160 L
• Insulation: injected PUF 43 kg/m3, CFC‑free; thickness 70 mm (back) / 50 mm (sides)
• Structure: monocoque; white plastified steel with antibacterial film or 18/10 AISI 304 stainless steel interior; rounded inner corners
• Mobility: 4 unidirectional rollers + 2 front feet; full‑height adjustable LED lighting
• Refrigeration: professional ventilated system with adaptive automatic defrost and condensate evaporation; Night & Day energy reduction function

Controller
7" full touch microprocessor interface with 0.1 °C resolution and ±0.3 °C accuracy. Standard features: temperature and alarm recording, multi‑trace real‑time graph, editable setpoint and alarm limits, energy consumption and battery status. Ports: SD card slot, USB, optional SIM (GSM). Integrated web server (LAN RJ45) and MODBUS TCP/IP, dry contact for remote alarm. Optional electric digital lock. DMLP TOUCH module provides independent recording with backup battery so events and alarms are logged during power failure. Acoustic and visual alarms (configurable) record date/time/type/duration/max temp.

Technical data

• Refrigerant: R290
• Energy consumption: 5 kWh/24h
• Power absorption / current: 0.17 + 0.32 kW / 1 + 2.3 A; inrush: 3 + 5 A
• Noise level: <50 dBA
• Heat rejection EN 12900: 208 W
• Shelves included: 4 (2+2); max shelves: 3+3; shelf size (wire): 46 x 45 cm
• Drawers max: 5 + 3; drawer dimensions with dividers (each compartment): 11.8 x 40 x 7.5 cm (x3); without dividers: 39 x 40 x 7.5 cm; stainless wire drawer: 43.5 x 40.5 x 6.2 cm

Characteristics / technical specifications

• Brand: Fiocchetti
• Model: PLASMA-VISION 2T 400 TOUCH
• Product code: DMD0402
• Type: combined refrigerator + freezer (medical device, Class IIa)
• Compartments: 2 independent (simultaneous blood and plasma storage)
• Temperature ranges: +2/+6 °C (blood) | -10/-20 °C (plasma), configurable
• Total capacity: 358 L (nominal 200+200 L)
• External dimensions (WxDxH): 60 x 66 x 202 cm
• Controller: 7" FULL TOUCH with data logging (SD/USB), DMLP TOUCH backup, RJ45 and remote alarm contact
• Doors: 2 glass doors
• Standards: Medical Device Directive 93/42/EEC (Class IIa) with amendment 2007/47/EEC; registered in Italian Ministry of Health MD Repertoire; RoHS 2011/65/CE
