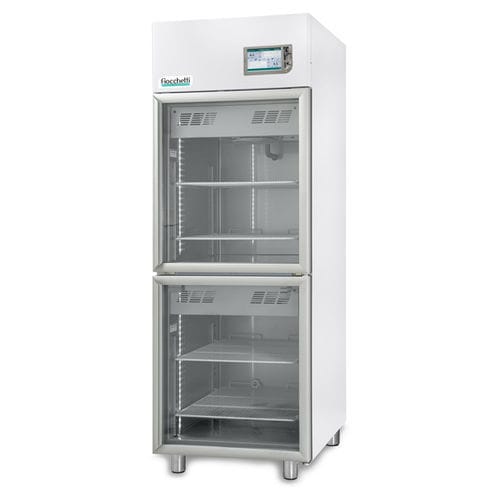

Blood bank refrigerator PLASMA-VISION 2T 700 TOUCH

for blood plasmaupright2 doors

Overview
Combined fridge‑freezer certified as a medical device for separate storage of blood and plasma in a single cabinet. Two glass doors, fully independent dual refrigeration circuits and a 7" full touch controller with data logging and event recording. Code: DMD0702.

Main features

• Two independent compartments for simultaneous storage: blood at +2/+6 °C and plasma at -10/-20 °C
• Two glass doors for separate access
• Double completely independent cooling units
• 7" full touch controller (TOUCH) with multi‑trace real‑time graph
• Customizable interior fittings (shelves, drawers, stainless steel wire baskets, plexiglass fronts)
• DMLP TOUCH independent recorder with backup battery for logging during power loss
• Designed and certified as Medical Device (Directive 93/42/EEC class IIa) and RoHS compliant

Structure and refrigeration

• Inner dimensions (each compartment): 60 x 68 x 70 cm / 60 x 68 x 74 cm
• Nominal capacity: 350 + 350 L; Net capacity: 620 L (total listed 593 L on some specs)
• Insulation: high‑density injected PUF (43 kg/m3), water‑foam injection, CFC‑free; thickness 60 mm
• Structure: monocoque; plasticized atoxic white steel with antibacterial film or internal AISI 304 stainless steel; rounded inner corners
• Stability: 4 height‑adjustable feet included
• Interior lighting: full‑height dimmable LED
• Refrigeration: professional forced‑air ventilation; adaptive automatic defrost with condensate collection
• Energy saving: Night & Day function

Controller

• 7" full touch microprocessor controller with 0.1 °C resolution and ±0.3 °C accuracy
• Standard temperature and alarm recording with multi‑trace graph, editable set‑points and alarm limits
• Recording/media: SD card slot for history, USB port for download/update, SIM slot for optional GSM module
• Connectivity: integrated web server for LAN (RJ45) and MODBUS TCP/IP
• Safety: anti‑freeze and anti‑overheat devices, dry contact for remote alarms
• Additional: product temperature simulation probe, optional electric digital lock, external terminal board for dry contact and RJ45
• Upgradeable with GSM/Wi‑Fi modules and compatible with local or cloud monitoring systems; acoustic and visual alarms with event logging and battery backup

Technical data (selected)
Refrigerant: R290
Energy consumption: 7 kWh/24h
Power absorption / current: kW 0.17+0.32 / Amp 1+2.3
Inrush current: Amp 3+5
Noise level: <50 dBA
Heat rejection (EN 12900): 291 W
Shelves included: 4 (2+2); Max shelves: 3+3
Wire shelf dims: 56 x 65 cm
Drawers max: 5+3; Drawer inner dims with dividers (each compartment): 15 x 50 x 7.5 cm (3)

Certifications and compliance

• Medical Device Directive 93/42/EEC (class IIa) and amendment 2007/47/EEC; registered in the Italian Ministry of Health MD Repertoire
• RoHS compliance 2011/65/CE

Technical specifications

• Model: PLASMA‑VISION 2T 700 TOUCH
• Brand: Fiocchetti
• Code: DMD0702
• Temperature ranges: +2/+6 °C (blood) | -10/-20 °C (plasma)
• Nominal capacity: 350 + 350 L; Net capacity: 620 L
• External dims (WxDxH): 72 x 85.5 x 203 cm
• Insulation: injected PUF 43 kg/m3 — 60 mm
• Controller: 7" full touch; SD/USB/SIM; RJ45; DMLP TOUCH independent recorder
• Accessories on request: GSM/Wi‑Fi modules, Gateway IoT, LAN Supervisor, racks, pull‑out drawers, probes, wheels kit, voltage options and transport crate
