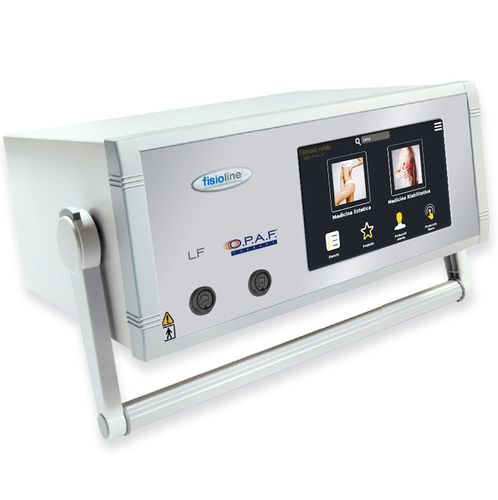

Ultrasound lipolysis unit Fisiosonic® Mobile

Overview
Fisiosonic® Mobile is a medical device for O.P.A.F.® Therapy (High-Frequency Pressure Waves) combining high- and low-frequency emissions (1-3 MHz and 40 kHz) together with cavitation. It uses a class E output stage to deliver higher mechanical effectiveness with constant power and reduced thermal effect.

Technology and Effects

• Cavitation effect
• Mechanical effect
• Diathermy

The high peak power of the generated pressure waves amplifies the mechanical effect, increasing energy to break up adipose cells and fibrous bands of cellulite and supporting local metabolic activation.

Indications

• Harmonious body contouring
• Reduction of localized fat deposits
• Reduction of cellulite
• Improvement of local blood vascularisation
• Tissue oxygenation

Treatment Modes and Applicators
Fisiosonic® Mobile provides an automatic sequential treatment mode for hands-free operation using scanning multidisc applicators with a large contact area. Sequential emission enables automatic treatment of large areas without continuous manual application, facilitating drainage of adipose tissue dissociated into fine particles.

Key features

• Three emission frequencies: 40 kHz, 1 MHz and 3 MHz
• Maximum output power density adjustable up to 5 W/cm²
• Automatic sequential hands-free treatment for 1–3 MHz
• Double-range scanning applicators (4 applicators per range)
• Automatic frequency switching and modulation variation
• Preset treatment protocols and option to create personalized programs
• Wizard digital step-by-step guide
• Rapid search with Inner Finder
• Video tutorial support

User interface and Display
Equipped with a user-friendly 7" colour touch screen. The Wizard guides selection, modification and control of functions and operational parameters, and the display shows treatment parameters and device performance in real time.

Accessories

• Scanning multidisc applicators suitable for hands-free treatments (elastic straps)

Technical specifications

• Technology: O.P.A.F.® Therapy (High-Frequency Pressure Waves) combined with cavitation
• Output stage: Class E for increased mechanical effectiveness and reduced thermal effect
• Frequencies: 40 kHz, 1 MHz and 3 MHz
• Maximum output power density: adjustable up to 5 W/cm²
• Automatic sequential (hands-free) treatment for 1–3 MHz
• Double-range scanning applicators (4 applicators per range)
• Automatic frequency switching and modulation variation
• Preset protocols and ability to create personalized programs
• Wizard digital guide and Inner Finder for rapid search
• Touch-screen user interface: 7" colour display
• Available in fixed and mobile versions
