Metering pump PO 70-400 SERIES
for liquidsrotary vane

metering pump
metering pump
Add to favorites
Compare this product

Characteristics

Fluid type
for liquids
Operational mode
rotary vane
Flow

Max.: 450 l/h (118.8774 us gal/h)

Min.: 100 l/h (26.4172 us gal/h)

Pressure

Max.: 16 bar (232.06 psi)

Min.: 0 bar (0 psi)

Description

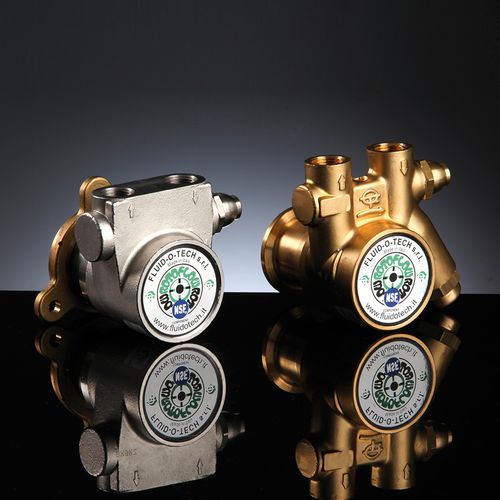

OVERVIEW The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling. FEATURES Self priming Quiet operation Pulsation free flow Internal relief valve available Long service life NFS and WRAS listed

Catalogs
