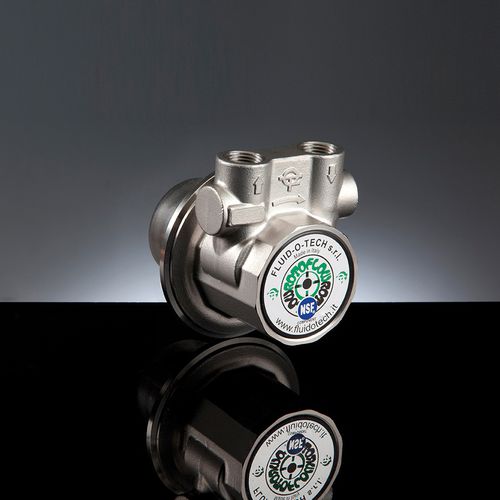

Dosing pump TM 300-400
magnetic-driverotary vanefor liquids

dosing pump
dosing pump
Add to favorites
Compare this product


Characteristics

Applications
dosing
Operation
magnetic-drive
Technology
rotary vane
Fluid type
for liquids
Flow

Min.: 360 l/h
(95.10194 us gal/h)

Max.: 550 l/h
(145.29463 us gal/h)

Pressure

Min.: 0 bar
(0 psi)

Max.: 18 bar
(261.07 psi)

Description

The TM 300-400 series positive displacement rotary vane pumps are available with stainless steel housings, with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 300 and 480 l/h at 1450 rpm. These pumps may be operated up to 1725 rpm and will provide flow proportional to speed, with a maximum of 560 l/h (150 GPH). Pump discharge pressure is up to a maximum of 18 bar (260 psi). The seal-less, magnetic coupling to motor provides extra reliability and longer service life. This series mounts directly to widely available M56, M63 IEC or NEMA 56C frame motors by means of an adapter. FEATURES Self priming Quiet operation Seal-less magnetic coupling Pulsation free flow Internal relief valve available Flow rate proportional to motor speed Mounts to NEMA 56C motors Long service life NSF and WRAS listed

Catalogs

No catalogs are available for this product.

See all of Fluid-o-Tech‘s catalogs
