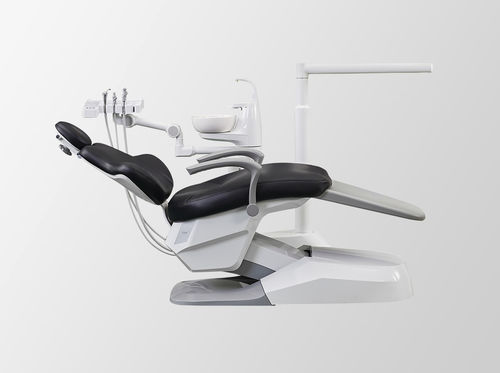

Dental unit with electric chair A6

with adjustable headrestwith hygiene systemwith delivery system

Overview
The A6 Implant Dental Unit provides an expanded working area tailored for six‑hand surgery. Fingertip touch controls, E-Link interactivity and integrated voice commands streamline implant procedures for modern dental teams.

Dentist Element

• Intelligent Voice Control: built-in voice operating system; activation phrase "Hey ESAY" to trigger the chair and accept voice commands for common functions.
• E-Link touch screen operating system with self-diagnostic function and high-sensitivity touch control.
• Full-screen touch operation: seamless panel design; high sensitivity that works with gloved or wet hands. Electric height adjustment of the instrument tray; two implant trays for increased workspace and flexibility.
• Spit restoration position: chair moves to spittoon position, lamp turns off automatically, spittoon flushes automatically, then returns to previous treatment position with lamp reactivated.
• Memory positions: save frequent positions to reduce setup time.
• Injection-molded footrest: easier to clean and more durable.
• Clean-up position: rapid preparation for the next procedure.
• Adjustable water knob: dual-color, tactile air/water control knobs for precise handling.
• 110° rotated instrument supports: adapt to different operating habits and personalized surgical needs.
• Multi-functional foot control: water/air-separating pedal with movement control, light control, cup filling, chip blowing and other functions.
• Electric instrument tray up/down movement for ergonomic adjustment during procedures.

Patient Element

• Ergonomic upholstery: imported wear-resistant leather with high-elastic sponge for soft, breathable comfort during treatment.
• ErgoMotion function: synchronized backrest and seat movements to support ergonomic spine extension and comfortable positioning.
• Ultra-thin backrest design combining comfort and aesthetics.
• 3-axis adjustable headrest suitable for adults, children and wheelchair users.

Design

• Double seal-ring connector: reinforced sealed filter, durable and easy to clean; handles solid debris to avoid blockages.
• 180° rotatable and detachable ceramic cuspidor: corrosion-resistant, easy to clean and maintain long-term hygiene.

Light

• Operation light with CREE LEDs: high lumen output, stable performance and long service life; LED stepless dimming for optimal surgical illumination.
• Selectable color temperature: warm, neutral and cool options for clinical needs.
• No Touch sensor: touchless on/off and intensity adjustment up to 29,000 Lux. Color temperature range indicated: 5000K–57,000K.

Assistant Element

• 180° rotatable assistant tray: assistant panel rotates 180° with reserved space for light curing; rotary tray arm supports flexible four‑handed operation.

Safety

• ASTER Disinfection System: one-button intensive disinfection for syringes, handpieces, HVE & SE and other instruments to ensure hygiene and prevent cross‑infection.
• Emergency position: rapid movement to assist in medical emergencies.
• Blockage protection: seat stops and rises slightly when resistance is detected to prevent incidents.

Specifications / technical details

• Model / Series: A6
• Intelligent Voice Control (activation phrase: "Hey ESAY")
• E-Link full-screen touch control with self-diagnosis
• Instrument tray: electric up/down adjustment; two implant trays
• Foot control: water/air-separating multifunction foot pedal
• Assistant tray: 180° rotation
• Cuspidor: 180° rotatable, detachable ceramic cuspidor
• Operation light: CREE LED, stepless dimming, No Touch sensor, up to 29,000 Lux, color temperature range 5000K–57,000K
• Disinfection: ASTER one-button disinfection for syringes/handpieces/HVE/SE
• ErgoMotion: synchronized backrest and seat movement
• Headrest: 3-axis adjustable
• Safety features: emergency position and blockage protection
