Dental unit with electric chair ADU M3

with adjustable headrestwith hygiene systemwith over delivery system

Overview

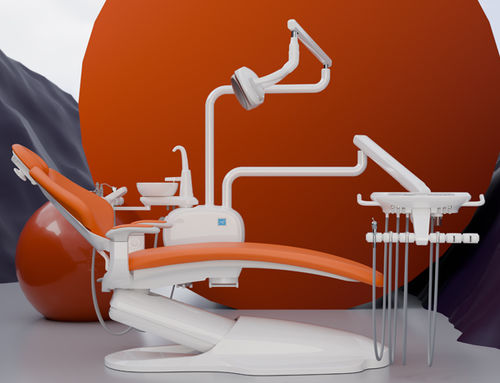

ADU M3 Hanging Type dental unit with a hanging instrument delivery system. American minimalist styling with integrated die-cast construction. Ergonomic layout designed to streamline clinical workflow and simplify maintenance.

Dentist Element
Minimalist proportions and balanced geometry for clear instrument placement. Integrated die-cast structure provides stable support and precise alignment.

Instrument tray
Multi-functional, interchangeable left/right tray that rotates around the cockpit to suit left- or right-handed operation. Tray includes six racks that can be added or removed and rotated independently for optimized instrument access.

Controls and foot controller
Human-centered control interfaces for treatment pacing. Multi-function foot controller handles water, air, chair and lighting control with a reserved programmable key for customization.

Patient Element
Contoured backrest with lumbar support and memory-foam eco-friendly upholstery. Neck and lumbar cushions for improved positioning and comfort.

Headrest
Three-axis multi-joint adjustable headrest: retractable, extendable and reversible to accommodate adults, children and wheelchair patients.

Design
Side control box with LED digital display for precise water temperature monitoring and automatic fault code display to support device stability.

Hygiene
Ceramic spittoon, antibacterial surface and easy to clean.

Light
T. MASTER LED operating light with three-color LED technology: high lumen output, low light decay and no flicker. Handles are detachable for disinfection; operation via sensor or manual control.

Assistant Element
Assistant racks are adjustable and rotatable to adapt to different working positions.

Specifications

• Model: ADU M3 (Hanging Type)
• Design style: American minimalist, integrated die-casting molding
• Instrument tray: Multi-functional, interchangeable left/right, rotatable around cockpit, 6 racks (add/remove)
• Chair rotation: Seat can rotate ±30° side-to-side
• Foot controller: Multi-function (water control, air control, chair control, lighting), reserved programmable key
• Patient comfort: Memory foam eco-friendly upholstery, neck and lumbar cushions, ultra-thin wing-shaped backrest
• Headrest: Three-axis multi-joint adjustable (retractable, extendable, reversible)
• Side box: LED digital display with water temperature control and automatic fault code display
• Spittoon: Ceramic, antibacterial, easy to clean
• Operating light: T. MASTER LED, three-color LED, high lumen, low decay, no flicker; detachable/disinfectable handles; sensor/manual operation
• Assistant racks: Adjustable and rotatable
