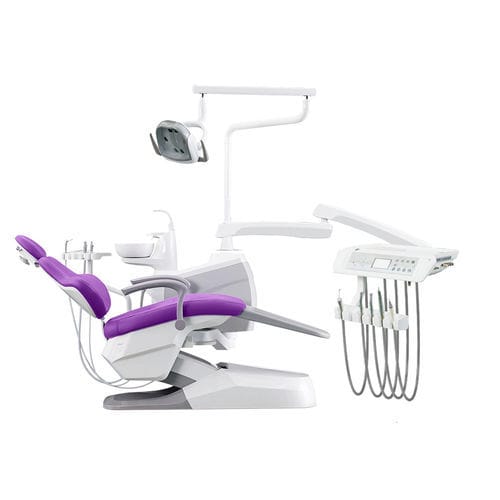

Dental unit with electric chair A5

with adjustable headrestwith hygiene systemwith side delivery system

Product overview
A5 Cart Type dental unit designed for cart-mounted configuration to increase treatment flexibility and streamline clinic workflows.

Dentist element

• Intelligent voice control: integrated voice control system allowing control of common functions by voice commands. Activation phrase "Hey ESAY" with system reply "Hello there"; subsequent functions controlled via voice recognition.
• Cart configuration: very quiet electric lift for smooth height adjustment to suit different operators.
• Spit/restoration position: chair automatically positions for spitting; lamp switches off to prevent glare; spittoon flushes automatically; chair returns to previous treatment position and lamp restores automatically.
• Memory positions: stores frequent positions to reduce setup time.
• Self-check function: automatic system inspection and fault detection.
• Clean-up position: dedicated position to speed cleaning and prepare for the next procedure.
• Adjustable water knob: dual-color, tactile air/water control knobs for intuitive operation.
• 135° rotatable six-holder instrument rack: adapts to varying working habits and ergonomic preferences.
• Multi-function foot control: water/air-separating foot pedal enabling movement control, light control, cup filling and chip blowing.

Patient element

• Ergonomic upholstery: imported wear-resistant leather with high-resilience foam; breathable and comfortable for long procedures.
• SynchMotion function: synchronized movement of backrest and seat for ergonomic spine support and comfortable transition to treatment position.
• Ultra-thin backrest design: combines patient comfort and reduced profile.
• 3-axis headrest: adjustable for adults, children and wheelchair patients.
• Rotatable chair-frame connecting rod: sidebox connected to middle of chair frame to enhance stability.

Design

• Rotated sidebox for four-handed operation to facilitate dentist‑assistant cooperation.
• Built-in three distilled water bottles: convenient for daily procedures and disinfection tasks.
• Double seal-ring connector: reinforced sealed filter, durable and easy to clean; prevents valve and drain pipe blockage from solid debris.
• 180° rotatable and detachable ceramic cuspidor: corrosion resistant and easy to maintain.

Light

• Operation light with CREE LEDs providing high luminous flux, stability and long life.
• LED stepless dimming to set optimal surgical illumination.
• No-touch sensor: switch lamp on/off and adjust intensity up to 29,000 Lux.
• Color temperature range: 5000K–5700K.

Assistant element

• 180° rotatable assistant tray: assistant panel rotates 180°; reserved light-curing space and rotating tray arm enable flexible four-handed techniques.

Technical specifications

• Product type: A5 Cart Type dental unit (cart-mounted configuration).
• Brand: ESAY MEDICAL.
• Voice control: Intelligent Voice Control system; activation phrase "Hey ESAY" with system reply "Hello there"; voice recognition for common functions.
• Lift system: quiet electric lift with adjustable height and memory-position function.
• Spit/restoration automation: automatic chair positioning, lamp off/on sequence and spittoon flush.
• Self-check: built-in Self-Diagram Fault Detection for automatic inspection.
• Foot control: multi-function water/air-separating foot pedal (movement, light control, cup filling, chip blowing).
• Instrument racks: 135° rotatable six-holder racks.
• Water: three built-in distilled water bottles; dual-color tactile water/air knob.
• Cuspidor: 180° rotatable and detachable ceramic cuspidor.
• Lighting: CREE LED, stepless dimming, no-touch sensor, up to 29,000 Lux, color temperature 5000K–5700K.
