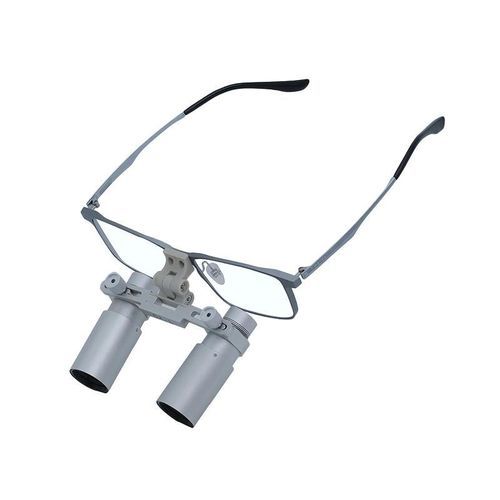

Glasses-type surgical loupe FLM

with flip-up systembinocular

Product overview
Flip-up dental loupes FLM5.0x provide 5.0x magnification with hinged optics and an adjustable interpupillary distance. The flip-up mechanism lets clinicians deploy optics for precision work and flip them away for general viewing. Lightweight construction (~65 g) and multiple working-distance options support prolonged clinical use and varied postures.

Key features

• 5.0x magnification for improved visual detail in dental and minor surgical procedures.
• Flip-up hinged optics for rapid engagement/disengagement without removing eyewear.
• Adjustable interpupillary distance to suit individual anatomy and ensure correct optical alignment.
• Multiple working distance options (S, R, L, XL) to accommodate different user heights and clinical setups.
• Lightweight design (~65 g) to reduce operator fatigue during extended use.

Technical table
Available magnification: 5.0x
Working distance (S): 280–380 mm
Working distance (R): 360–460 mm
Working distance (L): 440–540 mm
Working distance (XL): 500–600 mm
Field of view (typical): 60–70 mm
Depth of field (S): 60 mm
Depth of field (R): 64 mm
Depth of field (L): 68 mm
Depth of field (XL): 70 mm
Weight (approx.): 65 g

Usage notes

• Flip-up design allows quick switching between magnified and normal view without removing the loupes.
• Select the working-distance size (S, R, L, XL) that matches your posture and clinical task to optimize comfort and field of view.

Technical specifications

• Model: FLM5.0x
• Magnification: 5.0x
• Working distances: S = 280–380 mm; R = 360–460 mm; L = 440–540 mm; XL = 500–600 mm
• Field of view: 60–70 mm (depending on working distance)
• Depth of field: S = 60 mm; R = 64 mm; L = 68 mm; XL = 70 mm
• Weight: ~65 g
• Features: flip-up hinged optics; adjustable interpupillary distance; lightweight construction
• Recommended users: dentists, surgeons, hygienists, dental students
