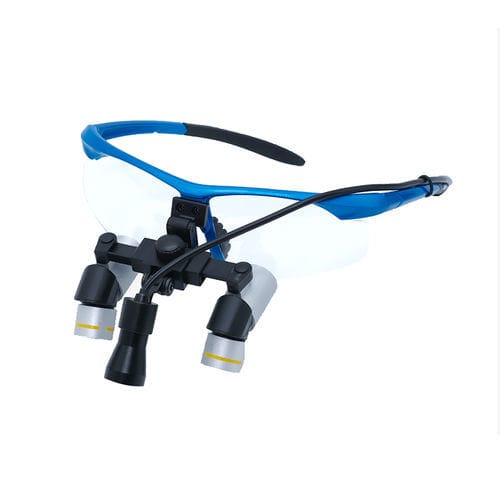

Glasses-type surgical loupe

with headlampErgo

Product overview
Ergo 3.0x dental loupes with micro headlight provide ergonomic 3.0X magnification and focused, shadow-free illumination. Lightweight and designed for comfort, they support a natural working posture and help reduce neck and back strain during extended procedures. The bundled micro headlight delivers 30,000 Lux @ 35 cm and a focused 35 mm spot at 110 mm to improve visibility in the oral cavity. Suitable as an entry-level loupe solution for dental students, hygienists and clinicians.

Product number
No. Ergo 3.0x

Loupe

• Magnification: 3.0X
• Working distance: 360 / 460 / 520 / 560 mm (options)
• Field of view: 95–115°
• Pupil distance: Adjustable
• Frame: Sporty frame
• Weight (loupe): 48 g

Micro Headlight (Light)

• Power: 3 W
• Voltage: 3.7 V–5 V
• Illuminance: 30,000 Lux @ 35 cm
• Spot size: 35 mm @ 110 mm
• Weight (light): 6.8 g
• Battery life: up to 12 hr

Description details
Entry-level starter bundle providing ergonomic magnification to support a natural working posture and reduce musculoskeletal strain. The micro headlight supplies focused, shadow-free illumination to enhance visibility in the oral cavity.

Technical specifications

• Model/Range: Ergo
• Loupe magnification: 3.0X
• Available working distances: 360 mm, 460 mm, 520 mm, 560 mm
• Field of view: 95–115°
• Pupil distance: Adjustable
• Loupe frame: Sporty frame
• Loupe weight: 48 g
• Headlight power: 3 W
• Headlight voltage: 3.7 V–5 V
• Headlight illuminance: 30,000 Lux @ 35 cm
• Headlight spot size: 35 mm @ 110 mm
• Headlight weight: 6.8 g
• Battery life (headlight): up to 12 hours
