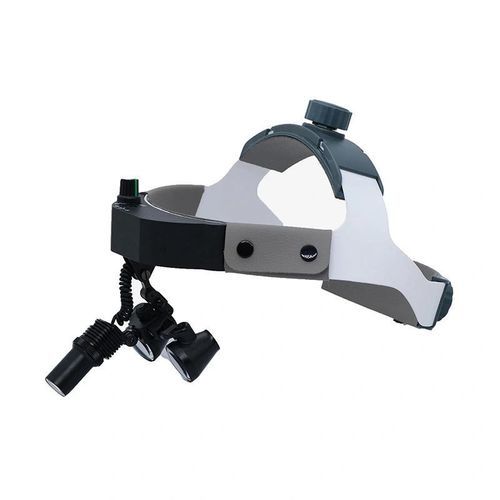

Headband-type surgical loupe HL003

with headlampwith flip-up system

Description
The dental headband flip-up loupes 3.5x with LED headlight provide hands-free magnification and targeted illumination for clinical dental and surgical tasks. The flip-up optical design allows rapid switching between magnified and unaided vision, while the adjustable headband secures the loupe comfortably for extended procedures. The integrated LED headlight delivers focused illumination of 30,000 lux at 35 cm to improve visibility in detailed treatments. A 2000 mAh rechargeable battery supplies 3–4 hours of continuous operation with a 2-hour charge time. At a total weight of 220 g, this system balances magnification and ergonomics for dentists, hygienists, oral surgeons and students.

Key Features

• 3.5x magnification for clinical precision
• Flip-up design for quick transition between magnified and normal view
• Adjustable headband for stable, comfortable fit
• LED headlight – 30,000 lux at 35 cm for focused illumination
• Rechargeable 2000 mAh battery – 3–4 hours runtime
• Short charging time – approximately 2 hours
• Lightweight system – total weight 220 g
• Suitable for dentists, surgeons, hygienists and students

Technical specifications

• Magnification: 3.5x
• Working distance: 300–600 mm
• Field of view: 110 mm
• Battery capacity: 2000 mAh
• Battery life: 3–4 hours
• Charging time: 2 hours
• Illuminance: 30,000 lux @ 35 cm (average)
• Spot diameter: 35 mm @ 10–110 mm
• Color temperature: 4500K / 6500K ±500K
• Weight: 220 g (total)
