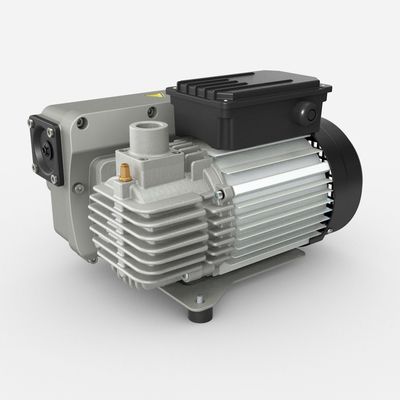

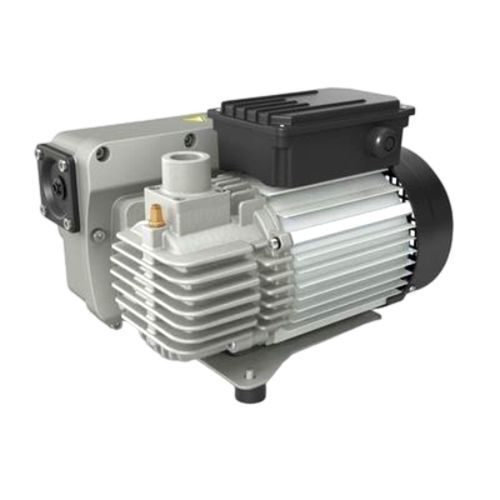

Medical vacuum pump V-VGD

laboratoryrotary vanelubricated

Overview
The V-VGD is a compact, oil-lubricated rotary vane vacuum pump delivering 10–18 m³/h. It provides adjustable vacuum control across fine and coarse ranges, an overhung rotor with an integral motor to minimise footprint, and integrated filtration and oil separation for stable operation.

Benefits

• Space-saving design: overhung rotor and integral motor reduce installation footprint.
• Adjustable vacuum levels: selectable fine and coarse ranges to adapt to process requirements.
• Low-noise operation suitable for production environments.
• Easy integration: compact dimensions and standard connections simplify system mounting.
• Reliable fluid handling: built-in fine mesh inlet filter and oil separator ensure consistent vacuum quality.

Technical Data

• Capacity range: 10–18 m³/h.
• Fine vacuum capability: down to 2 mbar (abs.); typical adjustable fine range 2–200 mbar (abs.).
• Coarse vacuum capability: typical adjustable coarse range 10–600 mbar (abs.).
• Design: overhung rotor with integral motor for a compact assembly.
• Standard components: fine mesh inlet filter, vacuum non-return valve, oil separator.
• Operational focus: compact footprint, adjustable vacuum control, low noise.

Standard Features

• Fine mesh inlet filter (standard).
• Vacuum non-return (check) valve (standard).
• Oil separator for oil-lubricated operation (standard).
• Integral motor for space-saving motor-pump assembly.

Industries / Applications

• Packaging (including food & beverage lines).
• Plastics processing and recycling systems.
• Medical and pharmaceutical equipment.
• Food processing machinery.
• Printing and paper handling equipment.
• Electronics manufacturing processes.
• General industrial and environmental systems.

Technical specifications

• Model: V-VGD
• Capacity: 10–18 m³/h
• Vacuum (fine): down to 2 mbar (abs.); adjustable fine range ~2–200 mbar (abs.)
• Vacuum (coarse): adjustable coarse range ~10–600 mbar (abs.)
• Construction: overhung rotor, integral motor (compact footprint)
• Filtration: fine mesh inlet filter (standard)
• Valves: vacuum non-return valve (standard)
• Separation: oil separator (standard)
• Operational characteristics: low-noise operation, adjustable vacuum control, compact integration
