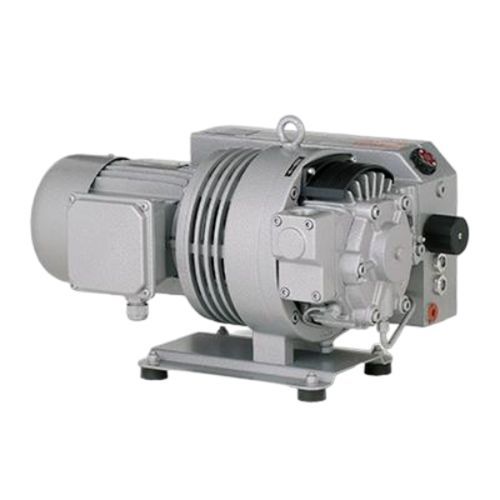

Medical vacuum pump V-VCA/V-VCE

rotary vanelubricated

Product overview
The V-VCA and V-VCE from Elmo Rietschle are single-stage, oil-lubricated rotary vane vacuum pumps designed for compact, reliable vacuum generation. With volume flows of approximately 25–30 m³/h, the pumps use the rotary vane principle to create periodic volume changes in the housing while oil provides sealing, lubrication and heat dissipation.

Benefits

• Effective sealing and lubrication provided by oil for stable operation.
• Integrated cooling fan for intensive air cooling and temperature control.
• Durable rotor support with bearings on both sides and flange-mounted motor.
• Standard fine mesh intake filters and oil separators for clean operation and oil recirculation.
• Flexible performance suitable for multiple industrial processes with competitive ultimate vacuum characteristics.

Technical data (summary)

• Volume flow: approx. 25–30 m³/h.
• Ultimate vacuum: V-VCA up to 0.5 mbar (abs); V-VCE up to 10 mbar (abs).
• Cooling: intensive air cooling via integrated fan.
• Sealing and lubrication: oil-lubricated for sealing, lubrication and heat dissipation.
• Filtration: fine mesh intake filter and oil separator as standard.
• Construction: single-stage rotary vane design with bearings on both rotor sides and flange motor mounting.

Industries and applications

• Packaging (food & beverage)
• Plastics industry
• Pharmaceutical manufacturing
• Food processing
• Printing industry
• Medical and healthcare applications
• Environmental engineering
• Electronics manufacturing

Technical specifications

• Type: single-stage rotary vane vacuum pump (oil-lubricated)
• Model designation: V-VCA / V-VCE
• Nominal volume flow: 25–30 m³/h
• Ultimate vacuum (typical): V-VCA ≈ 0.5 mbar (abs); V-VCE ≈ 10 mbar (abs)
• Cooling: integrated air cooling fan
• Filtration: fine mesh intake filter and oil separator (standard)
• Design features: oil-based sealing/lubrication, bearings on both rotor sides, flange motor mounting
