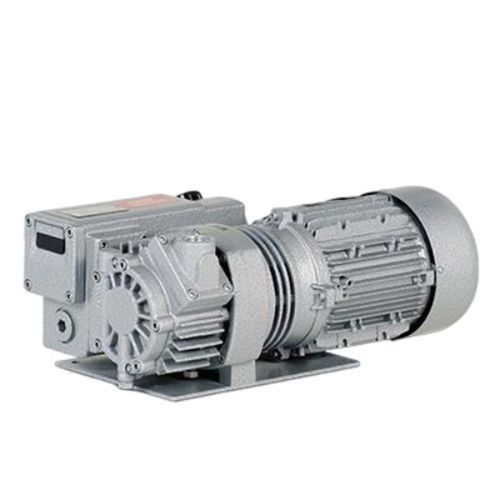

Rotary vane vacuum pump V-VCB

lubricated

Overview The V-VCB from Elmo Rietschle is a compact oil-lubricated rotary vane vacuum pump engineered for integration into small vacuum packaging machines and other light industrial vacuum systems. It offers a capacity range of 20 to 26.5 m³/h and an ultimate vacuum of 2 mbar (abs.). The unit features a flange-mounted IE3 motor, dual-side rotor bearings for balanced operation and an integrated fan for intensive air cooling. Standard supply includes a fine mesh filter, vacuum non-return valve and oil separator.

Benefits

• Space-efficient design tailored for small vacuum packaging equipment and constrained footprints
• Consistent vacuum performance with 2 mbar (abs.) ultimate vacuum to ensure packaging quality
• Integrated fan and dual bearings for reliable thermal and mechanical stability in continuous operation
• Delivered with fine mesh filter, non-return valve and oil separator to protect the system and reduce maintenance

Technical Data

• Capacity range: 20 to 26.5 m³/h
• Ultimate vacuum: 2 mbar (abs.)
• Motor: flange-mounted IE3 motor
• Mounting: flange mount
• Rotor support: bearings on both sides for balanced operation
• Cooling: integrated fan for intensive air cooling
• Standard filtration/separation: fine mesh filter, vacuum non-return valve, oil separator
• Primary application: integration into small vacuum packaging machines and light industrial vacuum systems

Features / technical specifications

• Compact footprint for machine-level integration
• Design optimized for continuous packaging cycles
• Standard accessories supplied for immediate installation
• Suitable for food packaging and other low-to-moderate duty vacuum applications
