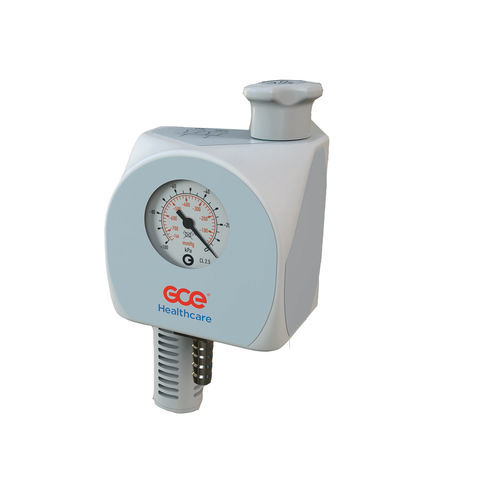

Venturi ejector MEDIEJECT II

medical

The MediEject II has best in class performance in vacuum depth, gas consumption and noise level. MediEject II is mainly used in healthcare organizations where a vacuum source is not available. MediEject II can be used instead of a vacuum regulator and can be used for suction of blood, secretions and food particles from the oral cavity, the nose/pharyngeal space and the bronchial system. MediEject II is available in wide range of inlet probe connectors that conform to various international standards like DIN, BSI, SS and also available in NIST version. ADVANTAGES 10 years life time Maintenance free One knob for ON/OFF and Vacuum control system Ergonomic shape Easy to clean Excellent vacuum performances Low gas consumption Low noise level Available in hose and probe version TECHNICAL DATA Driving gas:O2, AIR Inlet:All regional standards in probe or hose version Inlet pressure:4-5 bar (400-500 kPa) Max gas consumption at inlet 4 bar:25 lpm Free flow suction at inlet pressure 4 bar:25 lpm Noice level close/open suction:35/45 dB Suction effect:0.8 bar (-80kPa) Dimensions: Total Width:70 mm Depth (only body without plate/clamp/probe) - 52 mm Max Height:150 mm Weight:0,550 kg Regulations: MDD 93/42/EEC-MDD 2007/47/EC EN ISO 10079-3 - Suction equipment EN 1789 - Ambulance Standards MRI Compatible
