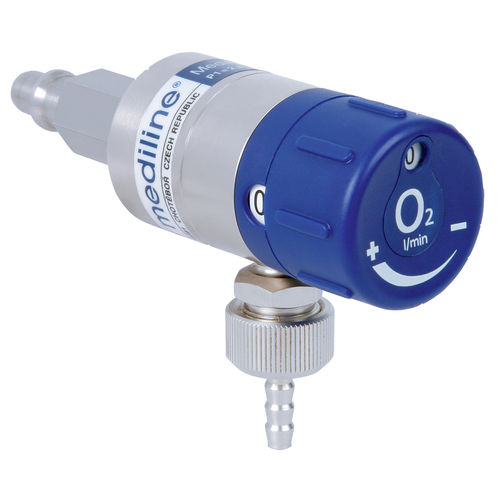

Oxygen pressure regulator MEDIFLOW® II

medicalfor hospitals

Innovative self centering flow setting device with continuous flow between settings. In the unlikely event of indent mechanism failure, the patient will still be supplied by medicinal gas Lateral and frontal reading of flow setting 360° swivelling outlet - it enables better orientation of the tube (preventing from twisting) The flow is adjusted via an easy accessible front mounted control knob. The new flow control technology is featuring an improved flow setting function and is guaranteeing continuous flow to the patient, even in the unlikely event, that the flow control knob is placed in between two flow settings. TECHNICAL DATA Inlet connection: according to national standards Outlet connection: 9/16"UNF, M12×1,25, G 3/8, G 1/4 with hose nipple Body material: nickel-plated brass Control knob: polyamide 0-rings: EPDM Temperature range: - Storage: - 30 °C to + 60 °C Operation:- 20 °C to + 60 °C Regulations: Complies with medical devices directive 93/42/EEC Complies with ISO 15002 (Low pressure regulators) Complies with Standard EN 1789 (Medical vehicles and their equipment)
