Air pressure regulator MEDIVITAL®
O2N2Ohelium

Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 2
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 3
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 4
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 5
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 6
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 7
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 8
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 9
Air pressure regulator - MEDIVITAL® - GCE Group - O2 / N2O / helium - image - 10
Add to favorites
Compare this product


Characteristics

Fluid type
O2, air, N2O, helium
Applications
medical, laboratory
Connection type
integrated
Features
adjustable-flow
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 25 l/min
(6.6 us gal/min)

Inlet pressure

300 bar
(4,351.1 psi)

Output pressure

Min.: 3.6 bar
(52.2 psi)

Max.: 5.5 bar
(79.8 psi)

Height

153 mm
(6 in)

Weight

1,150 g
(40.6 oz)

Width

112 mm
(4.4 in)

Depth

118 mm
(4.6 in)

Description

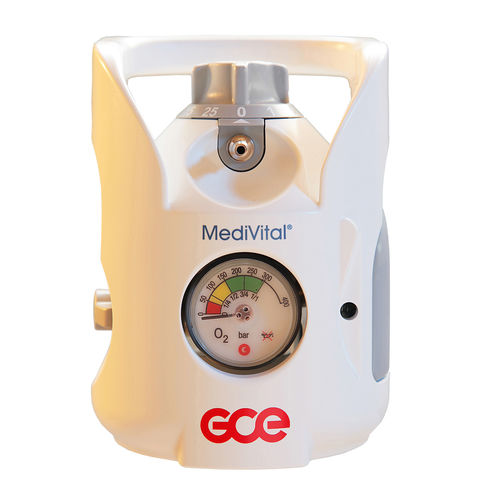

The GCE MediVital® Pressure Regulator Integrated With Cylinder Valve, engineered in compliance with Medical Device Regulation 2017/745 (MDR), works with medical gases up to 300 bar of pressure. Introduction Experience the ultimate in convenience and safety with the GCE MediVital® Pressure Regulator Integrated With Cylinder Valve. It works seamlessly with various medical gases, including oxygen, oxygen mixtures, and air, supporting up to 300 Bar of working pressure. Designed for ease of use, the pressure indicator gauge boasts a wide-angle dial and a fluorescent scale for optimal visibility. The shut-off valve features a user-friendly handwheel with clear on/off status and open/close direction markings, while the flow control knob's click system provides precise and visible flow adjustments. Safety is paramount in every GCE product, and the MediVital® Pressure Regulator Integrated With Cylinder Valve is no exception. This oxygen valve comes equipped with a modern guard that offers complete protection, covering the unit from the pressure outlet to the filling port. Features 15-Year Lifetime Designed with a 15-year lifetime for reliable performance. Versatile Applications This medical cylinder valve is suitable for use in homecare, emergency, and hospital applications. Heightened Visibility Easy-to-read flow selector and gauge help the operators stay updated at a glance. Protective Guard Easy-to-clean guard offers complete protection to the cylinder valve. Optional Accessories Optional bed hangers and humidifier holders are available for added convenience.
